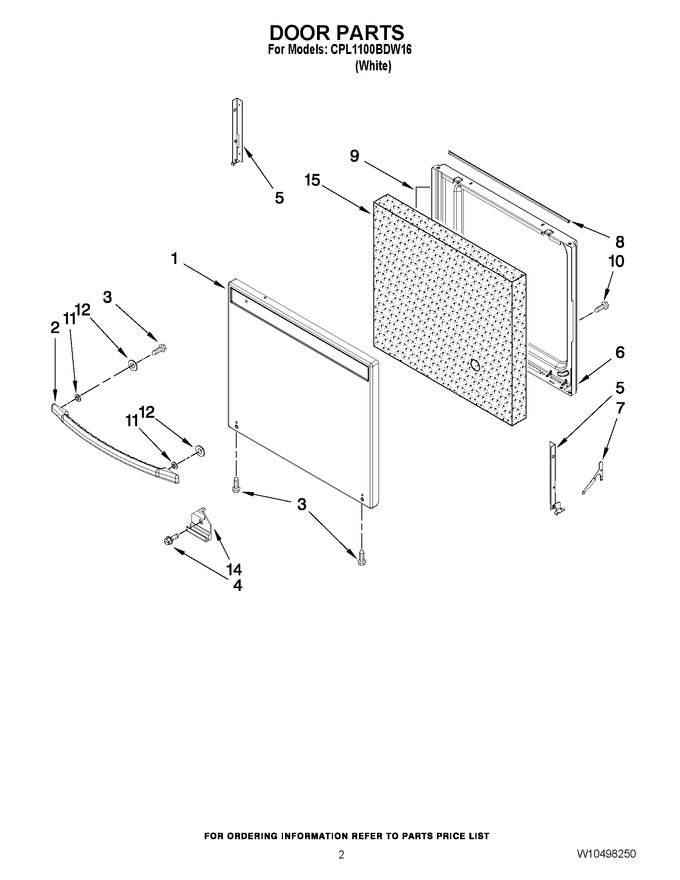

02 - Door Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2401W059-71		Panel, Door		Appelez-nous	-
2	2411F011-71		Handle, Door		Appelez-nous	-
3	WP999367		Screw   (Replaces: 7101P510-60)				$ 7.07
4	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
5	3818F053-34		Hinge, Door		Appelez-nous	-
6	2402W102-19		Lining, Door		Appelez-nous	-
7	3807F291-34		Arm, Spring		Appelez-nous	-
8	7212P014-60		Seal, Door (top)				$ 48.10
9	7212P015-60		Seal, Door (sides)				$ 45.93
10	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.47
11	8010P136-60		Spacer, Handle		Appelez-nous	-
12	8010P125-60		Spacer, Nylon		Appelez-nous	-
14	7112P029-60		Clip, Glass (black Model Only)		Appelez-nous	-
15	7002P429-60		Insulation, Door		Appelez-nous	-
