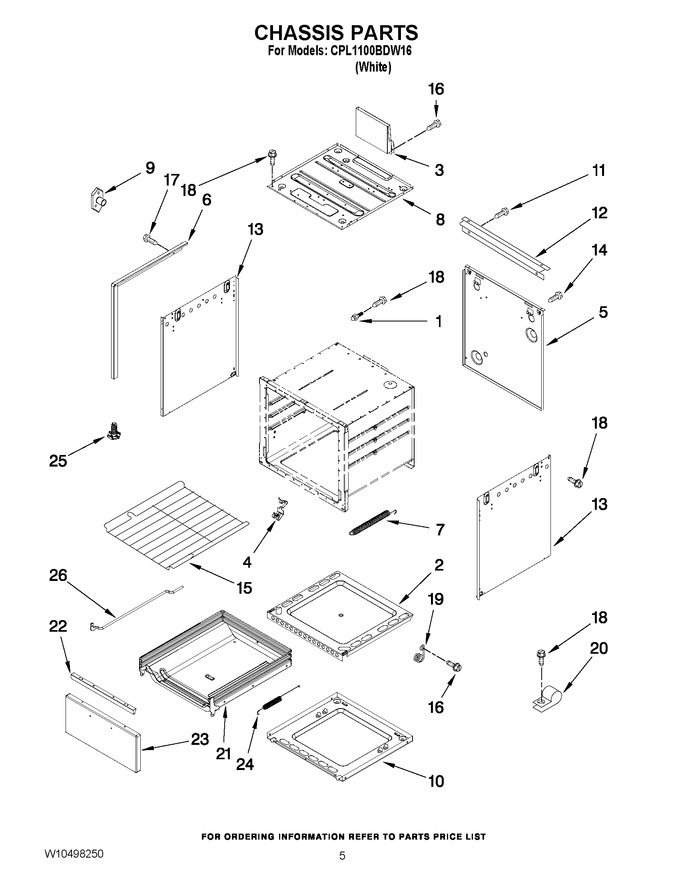

04 - Chassis Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8024P003-60		Strike, Main		Appelez-nous	-
2	5720A003-23		Bottom, Oven		Appelez-nous	-
3	4006W133-51		Box, Flue		Appelez-nous	-
4	WP7112P004-60		Clip, Thermostat   (Replaces: 7112P004-60)			Immediately	$ 11.07
5	4002F353-51		Back Main		Appelez-nous	-
6	3608F148-70		Trim, Side (left)		Appelez-nous	-
6	3608F147-70		Trim, Side (right)		Appelez-nous	-
7	7803P032-60		Spring, Door				$ 4.83
8	4011F507-51		Bottom, Burner Box		Appelez-nous	-
9	WP486255		T-nut   (Replaces: 7103P105-60)				$ 5.54
10	4011F325-51		Bottom, Main		Appelez-nous	-
11	WP98008545		Screw   (Replaces: 7101P633-60)				$ 15.94
12	3604F122-45		Shield, Deflector		Appelez-nous	-
13	2618F193-71		Panel, Side		Appelez-nous	-
14	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 12.62
15	7801P151-60		Rack, Oven				$ 43.98
16	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.47
17	7101P301-60		Screw		Appelez-nous	-
18	W11347848		Screw   (Replaces: 7101P376-60)				$ 12.20
19	7112P065-60		Clip, Oven Bottom		Appelez-nous	-
20	WP488366		Clamp, Wire   (Replaces: 7111P009-60)				$ 10.06
21	3407W005-19		Drawer, Broiler		Appelez-nous	-
22	2411F012-71		Handle, Drawer		Appelez-nous	-
23	2416F103-71		Panel, Drawer		Appelez-nous	-
24	7803P068-60		Spring, Drawer		Appelez-nous	-
25	W11665456		Leg, Leveling   (Replaces: 7101P507-60)			Immediately	$ 25.30
26	3808F007-61		Rod, Runner (left)		Appelez-nous	-
26	3808F008-61		Rod, Runner (right)		Appelez-nous	-
NI	7002P495-60		Insulation, Wrap		Appelez-nous	-
NI	7002P429-60		Insulation, Back		Appelez-nous	-
