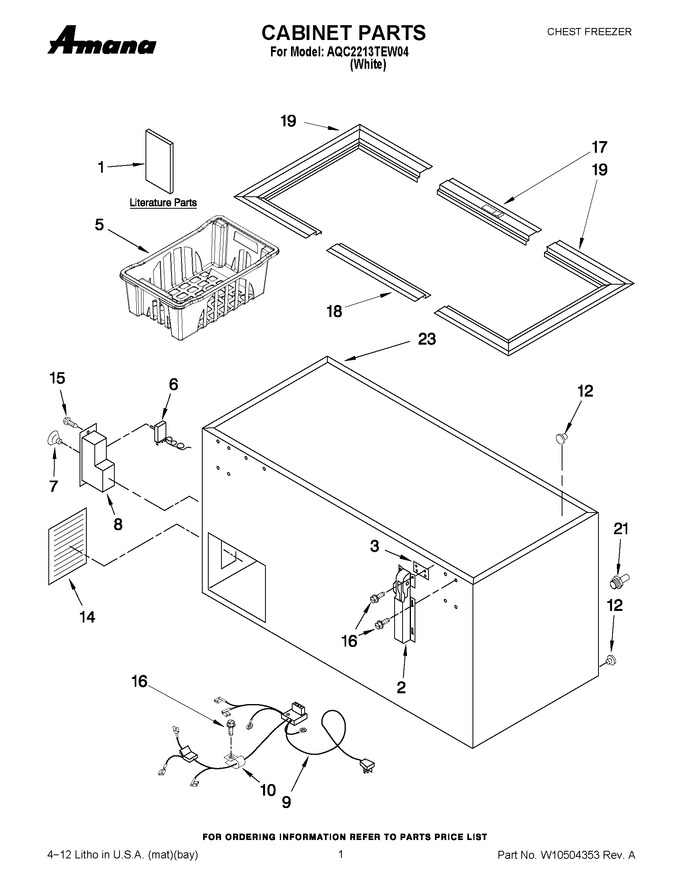

01 - Cabinet Parts


02 - Door Parts


03 - Unit Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10326794		Owners Manual		Appelez-nous	-
1	W10326820		Energy Guide/tag		Appelez-nous	-
2	W11192185		Hinge, Assembly   (Replaces: 4-34582-002)				$ 164.89
3	1-17548-006		Spacer, Hinge				$ 18.64
5	4-36033-003		Basket (upper, Large)		Appelez-nous	-
6	WP4-35940-001		Thermostat   (Replaces: 4-35940-001)				$ 148.16
7	4-35101-002		Knob, Thermostat		Appelez-nous	-
8	W10682894		Control Box   (Replaces: 4-35976-003)		Appelez-nous	-
9	4-35136-002		Harness, Wiring				$ 213.24
10	488946		Plastic, Clip   (Replaces: 3-25095-021)				$ 18.41
12	3-33211-001		Drain, Plug				$ 10.63
14	4-35099-001		Access Panel		Appelez-nous	-
15	3-24004-049		Screw		Appelez-nous	-
16	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
17	4-35011-005		Front, Breaker Strip		Appelez-nous	-
18	W11045298		Rear, Breaker Strip   (Replaces: 4-35010-005)		Appelez-nous	-
19	W11045300		End, Breaker Strip (2)   (Replaces: 4-35009-003)				$ 80.74
21	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
23	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
