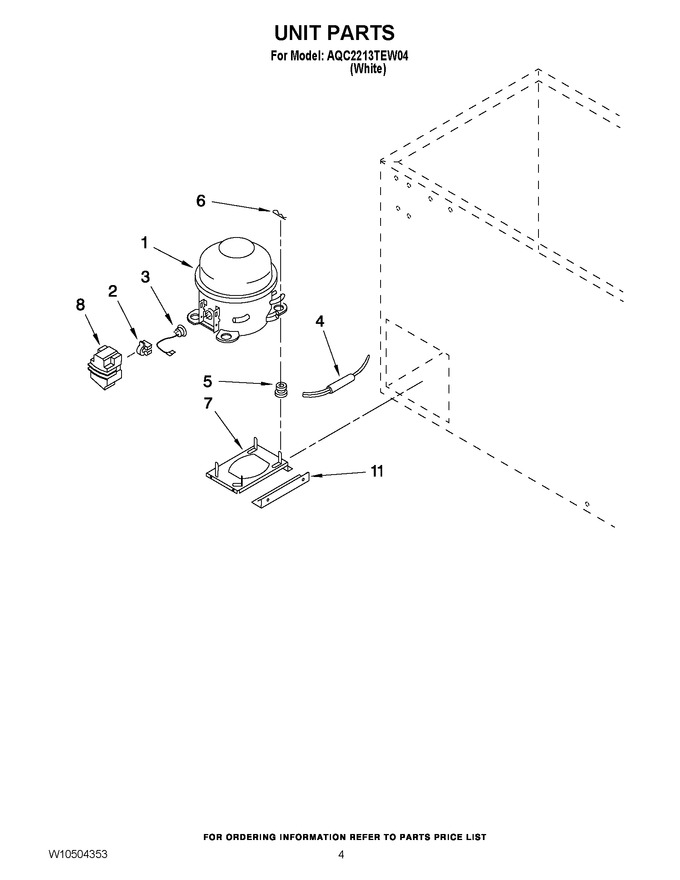

01 - Cabinet Parts
02 - Door Parts
03 - Unit Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10309994 | Compressor (Replaces: 4-32972-143) |
|
Immediately | $ 551.61 | ||||
| 2 | WPW10466655 | Relay (Replaces: W10466655) |
|
$ 115.81 | |||||
| 3 | WP2183456 | Overload (Replaces: 2-34286-037) |
|
$ 126.16 | |||||
| 4 | W10843121 | Drier (Replaces: W10459086) |
|
Immediately | $ 47.31 | ||||
| 5 | WP2163786 | Compressor, Mounting Grommet (Replaces: 13146462) |
|
$ 7.16 | |||||
| 6 | A201435 | Compressor,clip |
|
- | |||||
| 7 | 4-35083-001 | Compressor Base |
|
- | |||||
| 8 | WP61002138 | Cover (Replaces: W10462677) |
|
$ 7.89 | |||||
| 11 | 3-81556-001 | Brace |
|
- | |||||
| NI | N/P | Refrigerant Charge (4.8 Oz. (r-134a)) |
|
- |
