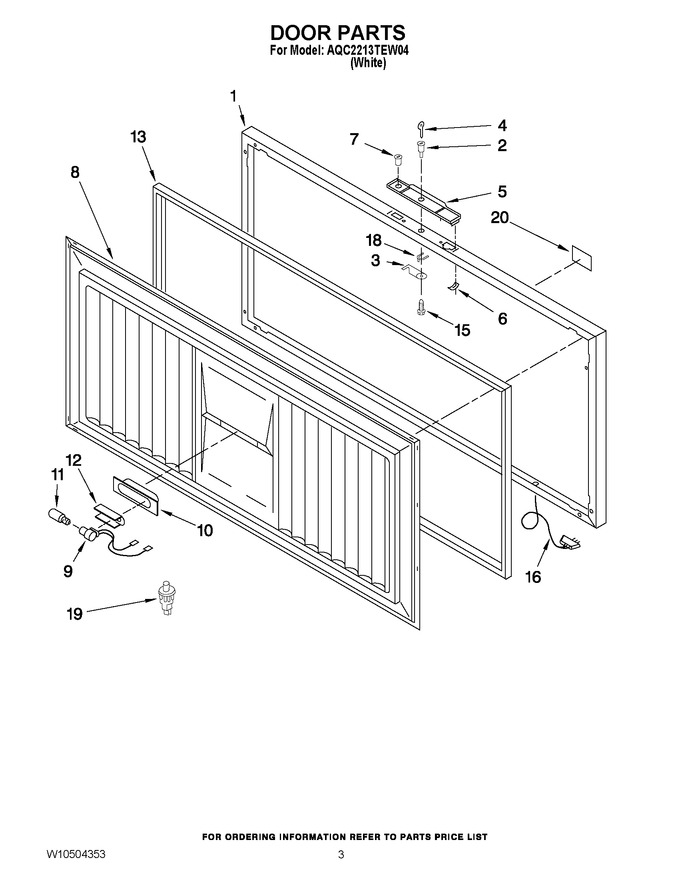

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4-35652-404 | Exterior Door Panel |
|
- | |||||
| 2 | 3-35284-001 | Lock Kit |
|
$ 24.42 | |||||
| 3 | 2-35195-006 | Hook Bolt, Lock |
|
$ 23.46 | |||||
| 4 | WP1-26355 | Key (Replaces: 1-26355) |
|
$ 9.76 | |||||
| 5 | 4-36016-003 | Handle |
|
$ 53.01 | |||||
| 6 | 3-24059-024 | Clip, Oblong |
|
$ 12.11 | |||||
| 7 | 3-75560-003 | Signal Light |
|
$ 105.09 | |||||
| 8 | 4-31742-017 | Interior Door Panel |
|
- | |||||
| 9 | 3-35862-001 | Lamp Socket |
|
- | |||||
| 10 | 3-25693-001 | Reflector, Light |
|
$ 15.36 | |||||
| 11 | W10873798 | Light Bulb (Replaces: 1-24397-001) |
|
Immediately | $ 12.53 | ||||
| 12 | 2-30045-001 | Heat Shield |
|
$ 11.39 | |||||
| 13 | 4-35260-006 | Gasket |
|
Immediately | $ 291.90 | ||||
| 15 | W11233072 | Screw (Replaces: 3-24004-100) |
|
Immediately | $ 12.62 | ||||
| 16 | W10620417 | Harness, Wiring (lid) (Replaces: 4-35641-002) |
|
$ 120.34 | |||||
| 18 | 1-26359 | Clip, Spring |
|
$ 71.75 | |||||
| 19 | W10917237 | Switch, Light (Replaces: 3-35645-001) |
|
$ 39.14 | |||||
| 20 | 2-82534-001 | Nameplate |
|
$ 43.08 |
