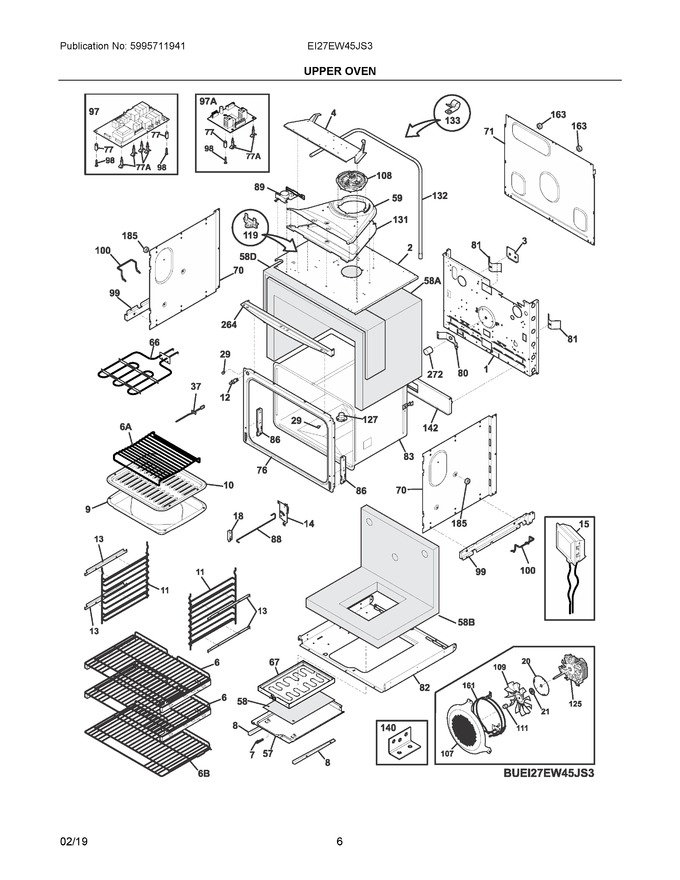

03 - Upper Oven
04 - Lower Oven
05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 318259213 | Back, Main |
|
- | |||||
| 2 | 318570510 | Panel, Insualtion, Top |
|
- | |||||
| 3 | 318402800 | Plate, Cover |
|
$ 9.23 | |||||
| 4 | 318577700 | Panel, Mounting |
|
- | |||||
| 6 | 318903104 | Shelf, Oven |
|
$ 294.16 | |||||
| 7 | 318368300 | Pin, Locking, (2) |
|
$ 9.93 | |||||
| 8 | 318361801 | Bracket, Element, (2) |
|
- | |||||
| 9 | 318138801 | Pan, Broiler |
|
- | |||||
| 10 | 318126401 | Insert, Broiler Pan |
|
- | |||||
| 11 | 318903300 | Rack, Oven Shelf, (2) |
|
$ 105.80 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 44.04 | ||||
| 13 | 318603913 | Bracket, Ladder Mtg., (4) |
|
$ 66.99 | |||||
| 14 | 318562200 | Sensor Assy, W/switch, And Bracket |
|
$ 257.99 | |||||
| 15 | 318241006 | Lamp, Oven, (2), Halogen |
|
$ 117.71 | |||||
| 18 | 318562300 | Bracket, Rod |
|
$ 16.87 | |||||
| 20 | 318389400 | Plate, Retainer |
|
$ 16.21 | |||||
| 21 | 318389000 | Seal, Ring |
|
$ 22.75 | |||||
| 29 | 316517600 | Spacer, Oven Door |
|
$ 12.05 | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe (Replaces: 318562500) |
|
Immediately | $ 48.13 | ||||
| 57 | 318902704 | Panel, Service (Replaces: 318902701) |
|
- | |||||
| 58 | 318330503 | Insulation, Service Panel |
|
$ 43.05 | |||||
| 59 | 318570600 | Duct, Cooling Fan |
|
- | |||||
| 66 | 318255607 | Element, Broil, 3400w, 6 Pass |
|
$ 144.64 | |||||
| 67 | 318902502 | Element, Hidden Bake, 1450w |
|
Immediately | $ 205.21 | ||||
| 70 | 318259114 | Shield, Insulation, Sides, (2) |
|
$ 96.81 | |||||
| 71 | 318260001 | Panel, Rear Box |
|
- | |||||
| 76 | 318056295 | Front, Oven |
|
- | |||||
| 77 | 318293702 | Spacer, Control |
|
$ 16.22 | |||||
| 80 | 5303320846 | Plate, Oven Mtg |
|
$ 51.50 | |||||
| 81 | 318192400 | Spring, Oven |
|
$ 312.53 | |||||
| 82 | 318258774 | Shield, Insulation, Lower |
|
- | |||||
| 83 | 318261510 | Liner, Oven Assy |
|
- | |||||
| 86 | 318241408 | Receptacle, Hinge, (2) |
|
$ 47.41 | |||||
| 88 | 318376505 | Rod, Latch |
|
$ 13.72 | |||||
| 89 | 318261226 | Motor, Latch Assy |
|
$ 153.41 | |||||
| 97 | 316443950 | Board, Relay, Dual Oven |
|
$ 451.33 | |||||
| 98 | 5304401490 | Screw, 6-18 X 1, (2) |
|
- | |||||
| 99 | 318252804 | Support, Side |
|
- | |||||
| 100 | 318410300 | Handle, Moving, Double Oven, (2) |
|
- | |||||
| 107 | 318906601 | Cover, Fan |
|
$ 202.63 | |||||
| 108 | 318575604 | Motor, Cooling Fan |
|
$ 135.35 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 19.13 | ||||
| 119 | 5304506123 | Thermal Cutoff, 121 Deg., (2) (Replaces: 318944000) |
|
$ 31.86 | |||||
| 125 | 318398203 | Motor, Fan |
|
$ 172.63 | |||||
| 127 | 318317105 | Adapter Assembly, Vent Tube, W/converter |
|
$ 7.65 | |||||
| 131 | 318574801 | Bottom, Cooling Duct |
|
- | |||||
| 132 | 318579103 | Tube, Exhaust, Upper |
|
- | |||||
| 133 | 318591500 | Clamp, Exhaust Tube |
|
- | |||||
| 140 | 318399310 | Bracket, Holding |
|
- | |||||
| 142 | 318123910 | Deflector |
|
- | |||||
| 161 | 318255511 | Element, Convection, 2500 W |
|
Immediately | $ 110.20 | ||||
| 163 | 318531703 | Spacer |
|
- | |||||
| 185 | 318531800 | Spacer, Oven Shield, (2) |
|
$ 12.76 | |||||
| 264 | 318257768 | Trim, Oven, Black, Front |
|
- | |||||
| 272 | 318249409 | Tube, Protector |
|
- | |||||
| 58A | 318386114 | Insulation, Oven Wrapper |
|
- | |||||
| 58B | 318330510 | Insulation, Back & Bottom, Oven |
|
- | |||||
| 58D | 318372006 | Insulation, 1/2" Thick, 43 X 9.5 |
|
$ 67.28 | |||||
| 6A | 318365800 | Rack, Broiler Pan |
|
$ 52.46 | |||||
| 6B | 318908002 | Shelf, Oven |
|
$ 207.43 | |||||
| 77A | 316114100 | Spacer |
|
$ 60.96 | |||||
| 97A | 316519205 | Board, Relay, Convection |
|
$ 256.95 | |||||
| NI | 5303323277 | Screw, 8-18 X 13/32 |
|
$ 8.66 | |||||
| NI | 318231870 | Wiring Harness, Bake Element |
|
$ 83.42 | |||||
| NI | 316519700 | Screw, #8-18 X 3/8, (10) (Replaces: 5304454881) |
|
$ 10.02 | |||||
| NI | 5303323129 | Screw, 8 X 0.750 |
|
- | |||||
| NI | 5303324184 | Screw, 8-18 X 5/16, Black |
|
Immediately | $ 14.18 | ||||
| NI | 318199787 | Wiring Harness, Latch, No Bas |
|
- | |||||
| NI | 5303311306 | Screw, 8-18 X 0.375, (4) |
|
- | |||||
| NI | 5304476994 | Screw, 8-18 X 1/4, (2) |
|
- | |||||
| NI | 5304417153 | Screw, Shoulder, 8-18 X 1/2, (4) |
|
- | |||||
| NI | 5304455945 | Spacer, Pad |
|
- | |||||
| NI | 318572779 | Harness, Wiring, Main |
|
- | |||||
| NI | 5304400192 | Retainer, Wiring |
|
- | |||||
| NI | 134178901 | Screw, 8-18 X 0.500 (Replaces: 5303211311) |
|
$ 14.89 | |||||
| NI | 318172904 | Support, Wire |
|
- | |||||
| NI | 5303288566 | Screw, 8 X 1/4, (4) (Replaces: 5303323130) |
|
$ 2.12 | |||||
| NI | 5304415832 | Screw, 8-18 X 0.406 |
|
- | |||||
| NI | 5303308450 | Screw, 8 X 0.375, (10) |
|
- | |||||
| NI | 316095800 | Clip, Hold Down |
|
$ 9.93 | |||||
| NI | 5303323139 | Screw, 10-24 X 0.906 |
|
$ 13.46 | |||||
| NI | 5304537066 | Lubricant, High Temp, Oven Racks (Replaces: 5304469602) |
|
Immediately | $ 42.62 | ||||
| NI | 5304436875 | Screw, 8-18 X 1/2, Black, (3) |
|
$ 14.41 | |||||
| NIA | 5304456367 | Rivet, Ladder Bracket, (8) |
|
$ 13.99 | |||||
| NIA | 318946400 | Bulb, Halogen, G9, 40w, 120v |
|
Immediately | $ 49.32 | ||||
| NIA | 5304481623 | Screw, Hinge/recpt Mtg |
|
$ 9.61 | |||||
| NIA | 5304435874 | Plate, Covering, Probe |
|
- | |||||
| NIA | 318268099 | Insulation |
|
- | |||||
| NIA | 318579001 | Bracket, Wire |
|
$ 11.08 |
