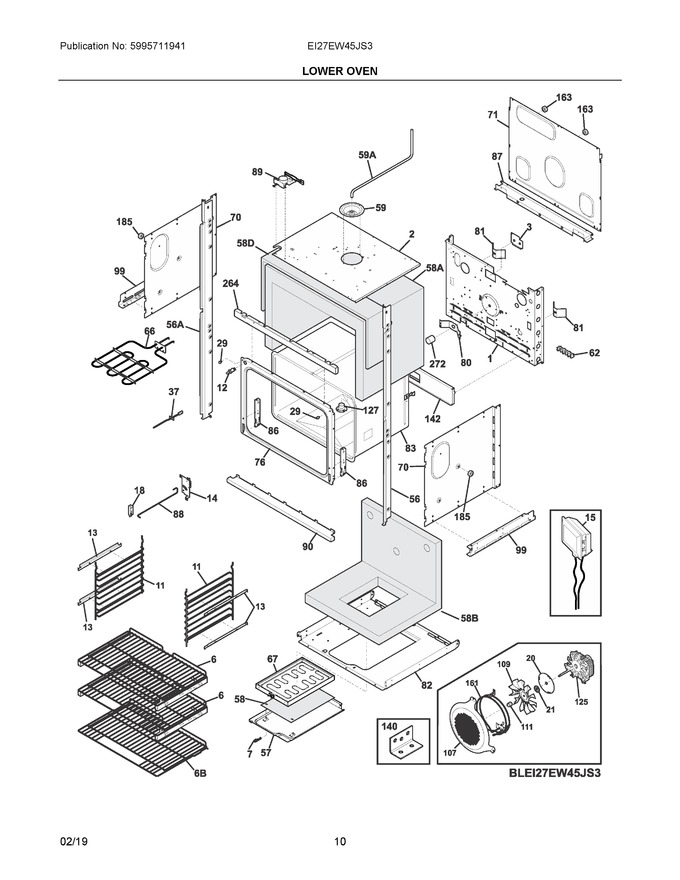

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	318259213		Back, Main		Appelez-nous	-
2	318570510		Panel, Insualtion, Top		Appelez-nous	-
3	318402800		Plate, Cover				$ 9.23
6	318903104		Shelf, Oven				$ 294.16
7	318368300		Pin, Locking, (2)				$ 9.93
11	318903300		Rack, Oven Shelf, (2)				$ 105.80
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	318603913		Bracket, Ladder Mtg., (4)				$ 66.99
14	318562200		Sensor Assy, W/switch, And Bracket				$ 257.99
15	318241006		Lamp, Oven, (2), Halogen				$ 117.71
18	318562300		Bracket, Rod				$ 16.87
20	318389400		Plate, Retainer				$ 16.21
21	318389000		Seal, Ring				$ 22.75
29	316517600		Spacer, Oven Door				$ 12.05
37	5304504897		Sensor, Oven Temp Probe   (Replaces: 318562500)			Immediately	$ 48.13
56	318903616		Trim, Side Filler, Stainless, Rh				$ 146.06
57	318902704		Panel, Service   (Replaces: 318902701)		Appelez-nous	-
58	318330503		Insulation, Service Panel				$ 43.05
59	318578901		Adapter, Flue		Appelez-nous	-
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
66	318255607		Element, Broil, 3400w, 6 Pass				$ 144.64
67	318902502		Element, Hidden Bake, 1450w			Immediately	$ 205.21
70	318259114		Shield, Insulation, Sides, (2)				$ 96.81
71	318260001		Panel, Rear Box		Appelez-nous	-
76	318056295		Front, Oven		Appelez-nous	-
80	5303320846		Plate, Oven Mtg				$ 51.50
81	318192400		Spring, Oven				$ 312.53
82	318258774		Shield, Insulation, Lower		Appelez-nous	-
83	318261510		Liner, Oven Assy		Appelez-nous	-
86	318241408		Receptacle, Hinge, (2)				$ 47.41
87	318260623		Bracket, Cable Mtg.		Appelez-nous	-
88	318376505		Rod, Latch				$ 13.72
89	318261226		Motor, Latch Assy				$ 153.41
90	318903504		Trim, Oven Bottom, Stainless				$ 273.58
99	318256203		Bracket, Side, Bottom, (2)		Appelez-nous	-
107	318906601		Cover, Fan				$ 202.63
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
125	318398203		Motor, Fan				$ 172.63
127	318317105		Adapter Assembly, Vent Tube, W/converter				$ 7.65
140	318399310		Bracket, Holding		Appelez-nous	-
142	318123910		Deflector		Appelez-nous	-
161	318255511		Element, Convection, 2500 W			Immediately	$ 110.20
163	318531703		Spacer		Appelez-nous	-
185	318531800		Spacer, Oven Shield, (2)				$ 12.76
264	318257818		Trim, Oven, Black, Front		Appelez-nous	-
272	318249409		Tube, Protector		Appelez-nous	-
56A	318903617		Trim, Side Filler, Stainless, Lh				$ 139.02
58A	318386114		Insulation, Oven Wrapper		Appelez-nous	-
58B	318330510		Insulation, Back & Bottom, Oven		Appelez-nous	-
58D	318372006		Insulation, 1/2" Thick, 43 X 9.5				$ 67.28
59A	318579203		Tube, Exhaust, Lower		Appelez-nous	-
6B	318908002		Shelf, Oven				$ 207.43
NI	5303323277		Screw, 8-18 X 13/32				$ 8.66
NI	5304415832		Screw, 8-18 X 0.406		Appelez-nous	-
NI	5304417153		Screw, Shoulder, 8-18 X 1/2, (4)		Appelez-nous	-
NI	5304476994		Screw, 8-18 X 1/4, (2)		Appelez-nous	-
NI	318199787		Wiring Harness, Latch, No Bas		Appelez-nous	-
NI	5303323136		Screw Ground		Appelez-nous	-
NI	5303323129		Screw, 8 X 0.750		Appelez-nous	-
NI	5303288566		Screw, 8 X 1/4, (4)   (Replaces: 5303323130)				$ 2.12
NI	318231870		Wiring Harness, Bake Element				$ 83.42
NI	318268099		Insulation		Appelez-nous	-
NI	5303323139		Screw, 10-24 X 0.906				$ 13.46
NI	316095800		Clip, Hold Down				$ 9.93
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NI	5303311306		Screw, 8-18 X 0.375, (4)		Appelez-nous	-
NI	5304506984		Box & Wires Assy   (Replaces: 318394442)				$ 150.17
NI	318572779		Harness, Wiring, Main		Appelez-nous	-
NI	5304400192		Retainer, Wiring		Appelez-nous	-
NI	134178901		Screw, 8-18 X 0.500   (Replaces: 5303211311)				$ 14.89
NI	5304537066		Lubricant, High Temp, Oven Racks   (Replaces: 5304469602)			Immediately	$ 42.62
NI	5304436875		Screw, 8-18 X 1/2, Black, (3)				$ 14.41
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIA	5304435874		Plate, Covering, Probe		Appelez-nous	-
NIA	5304456367		Rivet, Ladder Bracket, (8)				$ 13.99
NIA	316205500		Nut, 10-32   (Replaces: 5303323144)				$ 11.34
