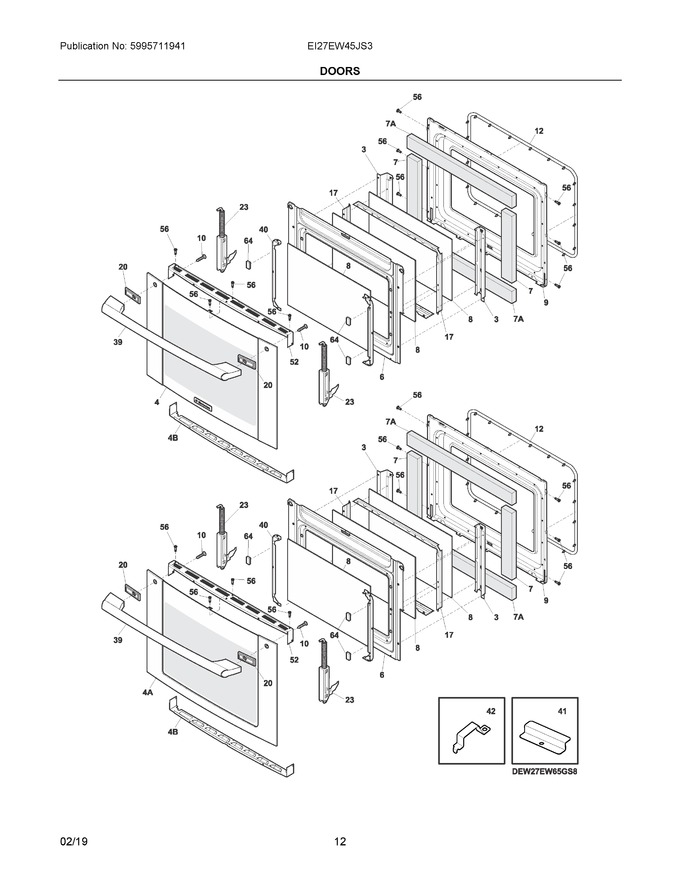

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	318902200		Bracket, Insulation, (2)				$ 17.75
4	318299507		Glass Assy., Upper Door, Black/stainless, W/badge				$ 516.21
6	318901002		Deflector, Door   (Replaces: 318901001)		Appelez-nous	-
7	318372017		Insulation, 13.25 X 2.375, 1" Thick, (2)   (Replaces: 318372000)				$ 16.30
8	318212200		Glass, Oven Door, Heat Barrier				$ 113.17
9	318900816		Liner, Oven Door		Appelez-nous	-
10	5304477736		Screw, Machine, 10-24x29/32, (2)		Appelez-nous	-
12	318053136		Gasket, Oven Door Seal				$ 124.16
17	318264701		Spacer, Glass, (2)		Appelez-nous	-
20	318902902		Spacer, Handle, Grey, (2)				$ 53.76
23	318586000		Hinge, Oven Door				$ 175.67
39	241881303		Handle, Door, Stainless		Appelez-nous	-
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Retainer, (2)   (Replaces: 318370600)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)   (Replaces: 318382301)				$ 50.81
52	318901603		Trim, Door, Black, Upper		Appelez-nous	-
56	5304462581		Screw, 8-32 X 5/16				$ 11.34
64	5304455945		Spacer, Pad		Appelez-nous	-
4A	318299508		Glass Assy., Lower Door, Black/stainless		Appelez-nous	-
4B	318901803		Trim, Door, Black, Bottom		Appelez-nous	-
7A	318372001		Insulation, 20.5 X 2.375, 1" Thick, (2)		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	5304436875		Screw, 8-18 X 1/2, Black, (3)				$ 14.41
NI	134716700		Washer, Flat, Lower   (Replaces: 3201909)				$ 2.12
NI	318346060		Insulation, .125 Thick, 3.125 X 8, (2)		Appelez-nous	-
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NIA	5304481623		Screw, Hinge/recpt Mtg				$ 9.61
