SELECT A DIAGRAM

01 - Control Panel Parts


02 - Oven Parts


03 - Oven Door


04 - Internal Oven Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Door, Microwave


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

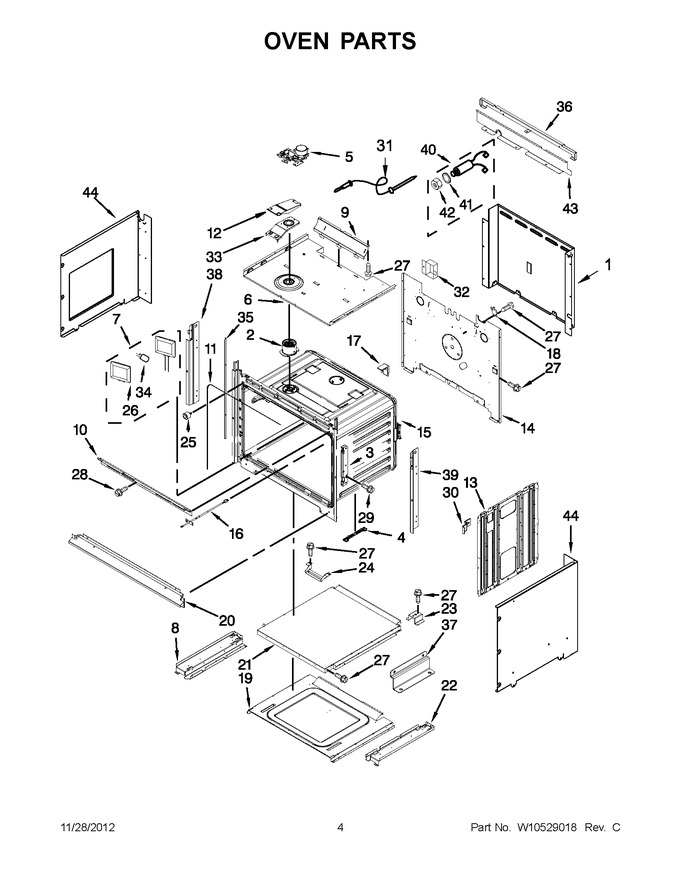

1	W10519707		Cover, Back Duct				$ 74.08
2	W11240525		Tube, Vent   (Replaces: W10282946)				$ 21.89
3	W11613828		Receiver, Hinge   (Replaces: W10282975)			Immediately	$ 49.28
4	WPW10318220		Spacer, Base   (Replaces: W10318220)				$ 22.94
5	W10883049		Latch, Motorized   (Replaces: W10314880)			Immediately	$ 275.81
6	W10282981		Chassis, Top		Appelez-nous	-
7	WPW10519866		Assembly, Oven Light   (Replaces: W10519866)				$ 82.57
8	W10283020		Support, Base Left Hand		Appelez-nous	-
9	W10351258		Bracket, Blower Deflector		Appelez-nous	-
10	W10505358		Vent, Center 27``		Appelez-nous	-
11	W10856596		Gasket   (Replaces: W10282961)			Immediately	$ 94.73
12	W10616810		Exhaust, Vent Cover   (Replaces: W10282985)				$ 59.96
13	W10318190		Side, Chassis				$ 117.20
14	W10282991		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	WP74008369		Probe, Sensor   (Replaces: 7430P043-60)			Immediately	$ 119.65
17	WPW10323551		Bumper, Rail   (Replaces: W10323551)				$ 7.21
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 100.66
19	W10282901		Base, Chassis				$ 177.43
20	WPW10327376		Assembly, Bottom Vent (stainless)   (Replaces: W10327376)				$ 151.41
20	W10351276		Assembly, Bottom Vent (black)				$ 125.23
20	W10506349		Assembly, Bottom Vent (white)				$ 138.12
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 188.61
22	W10283021		Support, Base Right Hand		Appelez-nous	-
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Chassis, Bottom Duct Spacer				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 9.44
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 82.57
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
28	WP4450038		Screw   (Replaces: 4450038)				$ 6.84
29	WPW10254050		Screw   (Replaces: W10254050)				$ 7.30
30	W10347649		Spacers, Front				$ 12.87
31	WP9755542		Probe, Temperature   (Replaces: 9755542)			Immediately	$ 82.91
32	W11819303		Connector, Cover   (Replaces: 8285593)		Appelez-nous	-
33	W10616809		Base, Exhaust Vent   (Replaces: W10282984)				$ 27.63
34	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 83.23
35	W10536162		Trim, Side (black (left))   (Replaces: W10504414)				$ 33.20
35	W10536162		Trim, Side (black (right))   (Replaces: W10504413)				$ 33.20
36	W10283023		Support, Crossbar		Appelez-nous	-
37	W10283025		Side, Bracket		Appelez-nous	-
38	W10360517		Rail, Side (left Hand)				$ 72.24
39	W11461034		Rail, Side (right Hand)   (Replaces: W10360519)				$ 52.56
40	8186589		Jack, Meat Probe			Immediately	$ 97.22
41	WP9755547		Washer, Lock   (Replaces: 9755547)				$ 5.49
42	WP9755546		Nut, Hidden   (Replaces: 9755546)				$ 6.26
43	W10507010		Deflector		Appelez-nous	-
44	W11688333		Side, Combo (insulation, Back)   (Replaces: W10282945)		Appelez-nous	-
44	W10351301		Side, Combo (right Hand)		Appelez-nous	-
44	W10283028		Side, Combo (left Hand)				$ 71.61
44	W10282943		Side, Combo (wrapper, Insulation)		Appelez-nous	-
