SELECT A DIAGRAM

01 - Control Panel Parts


02 - Oven Parts

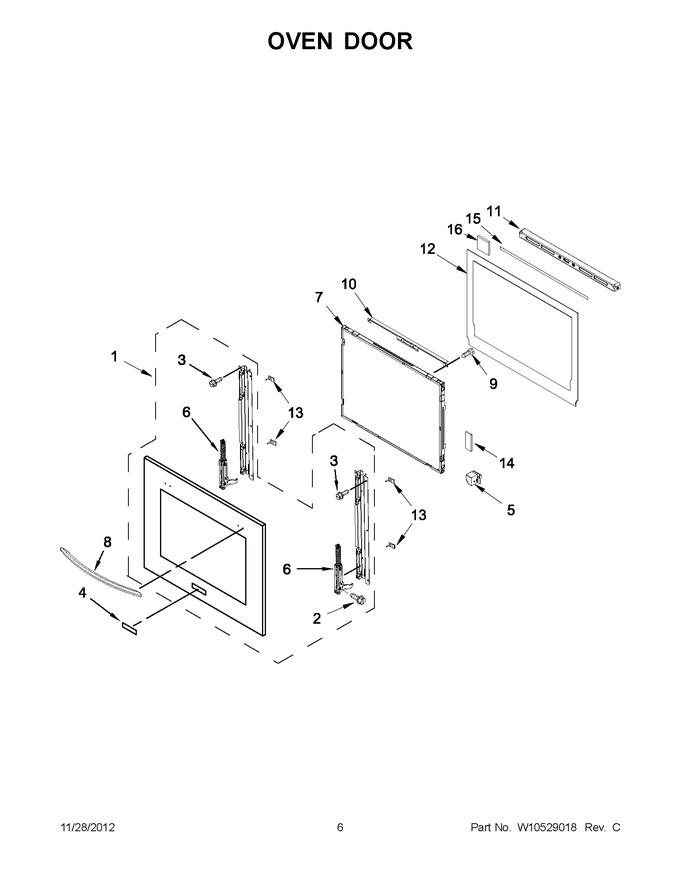

03 - Oven Door


04 - Internal Oven Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Door, Microwave


08 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10364932		Assembly, Window Pack (black)		Appelez-nous	-
1	W10364933		Assembly, Window Pack (white)		Appelez-nous	-
1	W10364931		Assembly, Window Pack (stainless)		Appelez-nous	-
2	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
3	WPY706189		Screw   (Replaces: 7101P653-60)			Immediately	$ 6.47
4	WPW10243391		Badge (stainless)   (Replaces: W10243391)				$ 49.98
4	WPW10243393		Badge (white)   (Replaces: W10243393)				$ 59.99
4	WPW10243392		Badge (black)   (Replaces: W10243392)				$ 63.17
5	W10284284		Bracket, Door Side (left)		Appelez-nous	-
5	WPW10581826		Bracket, Door Side (right)   (Replaces: W10284283)				$ 57.11
6	W11642291		Hinge, Door   (Replaces: W10419878)				$ 71.35
7	W10347599		Assembly, Window Pack				$ 212.42
8	WPW10437675		Door Handle (stainless)   (Replaces: W10437675)				$ 173.66
8	W10284920		Door Handle (white)		Appelez-nous	-
8	W10284919		Door Handle (black)		Appelez-nous	-
9	WP8533988		Screw 8-32 X .750 Tr Sc Black   (Replaces: 8533988)			Immediately	$ 7.16
10	W10502538		Bracket, Upper, Glass		Appelez-nous	-
11	W10416258		Vent, Door Top		Appelez-nous	-
12	WPW10335921		Liner, Door   (Replaces: W10335921)				$ 354.53
13	WPW10323551		Bumper, Rail   (Replaces: W10323551)				$ 7.21
14	W10840861		Spacer   (Replaces: W10517440)				$ 8.89
15	W10489274		Pad, Vent				$ 7.58
16	WPW10517428		Spacer, Vent   (Replaces: W10517428)			Immediately	$ 10.67

    View Diagram in Separate Window       Print Part List
