01 - Cover

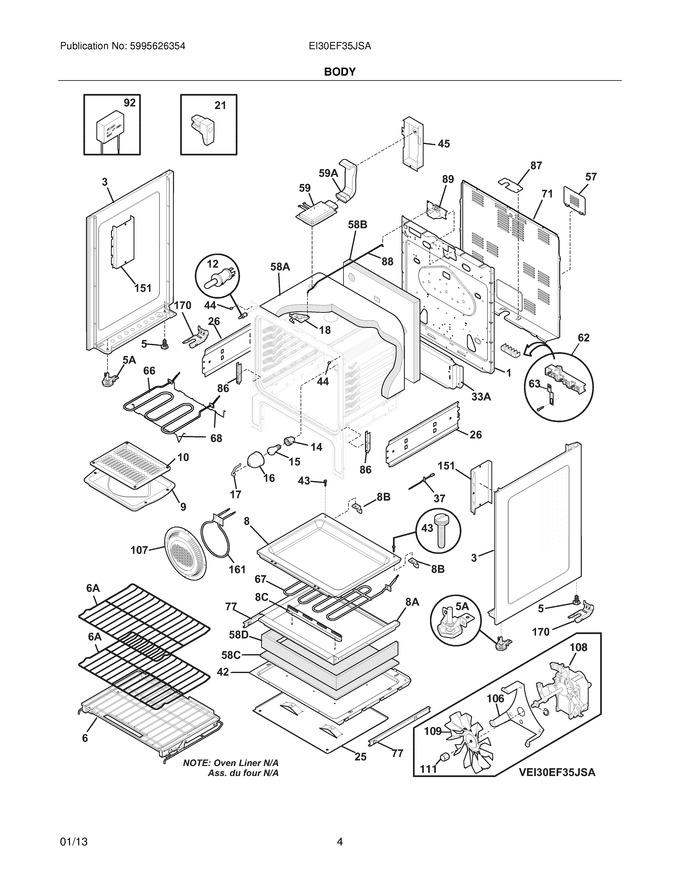

03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316502005 | Back,main |
|
- | |||||
| 3 | 316400144 | Panel,bodyside ,black ,rh (Replaces: 316400118) |
|
Immediately | $ 134.69 | ||||
| 3 | 316400145 | Panel,bodyside ,black ,lh (Replaces: 316400119) |
|
Immediately | $ 133.93 | ||||
| 5 | 316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
Immediately | $ 27.50 | ||||
| 6 | 316571800 | Rack Assembly,w/glides |
|
$ 290.93 | |||||
| 8 | 316505602 | Panel,cobalt ,oven Bottom |
|
$ 158.06 | |||||
| 9 | 316081901 | Pan,broiler ,cobalt Blue |
|
$ 74.32 | |||||
| 10 | 316082001 | Insert,broiler Pan ,cobalt Blue |
|
$ 53.09 | |||||
| 12 | 316445500 | Switch,oven Light ,door Frame |
|
Immediately | $ 54.74 | ||||
| 14 | 316116400 | Receptacle,oven Light |
|
Immediately | $ 56.10 | ||||
| 15 | 316538904 | Lamp,oven Light (Replaces: 316538901) |
|
Immediately | $ 20.48 | ||||
| 16 | 5304524341 | Lens,oven Light ,glass (Replaces: 318406100) |
|
Immediately | $ 14.18 | ||||
| 17 | 316087500 | Retainer,lens |
|
$ 56.70 | |||||
| 21 | 316408000 | Clip,bodyside |
|
$ 18.20 | |||||
| 25 | 316406200 | Shield,heat ,lower |
|
$ 87.97 | |||||
| 26 | 316409000 | Shield,warmer Side ,(2) |
|
$ 44.47 | |||||
| 42 | 316400701 | Shield,wool ,lower |
|
$ 162.30 | |||||
| 43 | 316282700 | Screw,8-18 X 1.438 ,oven Bottom (Replaces: 3131732) |
|
$ 9.93 | |||||
| 44 | 316517600 | Spacer,oven Door |
|
$ 12.05 | |||||
| 45 | 316509900 | Shield,vent Tube |
|
- | |||||
| 57 | 316283600 | Cover,access |
|
$ 12.50 | |||||
| 59 | 316215200 | Vent Tube,assembly ,w/catalyst |
|
- | |||||
| 63 | 316542600 | Plate,grounding Strap |
|
- | |||||
| 68 | 316429100 | Support,element ,broil |
|
$ 62.51 | |||||
| 71 | 316283204 | Shield,rear Wall (Replaces: 316283200) |
|
$ 56.12 | |||||
| 77 | 316456700 | Glide,warmer Drawer ,outer/rh & Lh ,(2) |
|
Immediately | $ 60.96 | ||||
| 86 | 316441300 | Receptacle,hinge |
|
$ 21.97 | |||||
| 87 | 316081200 | Bracket,cable Mtg |
|
- | |||||
| 88 | 316203500 | Rod,auto Latch |
|
$ 72.30 | |||||
| 106 | 316404100 | Bracket,motor Mtg. |
|
$ 63.70 | |||||
| 107 | 316026702 | Cover,fan |
|
$ 67.94 | |||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer |
|
Immediately | $ 19.13 | ||||
| 151 | 316404601 | Shield,bodyside |
|
$ 21.27 | |||||
| 170 | 316112005 | Anti Tip Kit,assembly |
|
Immediately | $ 18.91 | ||||
| 33A | 316402100 | Shield,rear Wall ,lower |
|
$ 47.30 | |||||
| 58A | 316406604 | Insulation,oven Wrapper (Replaces: 316406601) |
|
Immediately | $ 69.77 | ||||
| 58B | 316406502 | Insulation,oven Back |
|
- | |||||
| 58C | 316509600 | Insulation,lower Shield |
|
- | |||||
| 58D | 316509700 | Insulation,oven Bottom |
|
$ 60.25 | |||||
| 59A | 316510001 | Vent Tube,oven ,upper |
|
- | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 316496201 | Rack,oven (Replaces: 316496207) |
|
Immediately | $ 103.48 | ||||
| 8A | 316505701 | Base,bake Element |
|
$ 244.44 | |||||
| 8B | 316506000 | Bracket,support ,oven Bottom ,(2) |
|
$ 4.55 | |||||
| 8C | 316505801 | Support,element |
|
$ 25.48 | |||||
| F108 | 316256100 | Motor-fan |
|
Immediately | $ 211.18 | ||||
| F161 | 316211603 | Element,convection Fan ,350 W |
|
$ 255.86 | |||||
| F170 | 316541700 | Template,anti-tip |
|
- | |||||
| F170 | 316112005 | Bracket,anti-tip (Replaces: 316107200) |
|
Immediately | $ 18.91 | ||||
| F170 | 316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
$ 12.89 | |||||
| F18 | 316405800 | Latch Assembly,oven Door |
|
Immediately | $ 56.74 | ||||
| F37 | 316490000 | Probe,oven Temp |
|
Immediately | $ 58.30 | ||||
| F62 | 5303935271 | Terminal Block Kit |
|
$ 73.56 | |||||
| F66 | 316430900 | Element,broil ,4000w |
|
Immediately | $ 256.20 | ||||
| F67 | 316505500 | Element,bake ,3000w |
|
Immediately | $ 259.25 | ||||
| F89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 52.34 | ||||
| F92 | 316539900 | Filter,noise ,lock Motor ,suppressor |
|
$ 68.61 | |||||
| FNI | 316580265 | Harness,wiring ,main |
|
- | |||||
| FNI | 316580513 | Harness,wiring ,jumper |
|
- | |||||
| NI | 316205500 | Nut,hex Flange ,3/8 10-32 |
|
$ 11.34 | |||||
| NI | 316021109 | Screw`8-18 X 0.5 ,chrome |
|
Immediately | $ 27.50 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 13.46 | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.03 | |||||
| NI | 316418901 | Screw,trilobe ,10-32 X 5/16`` ,black |
|
$ 14.18 | |||||
| NI | 316418900 | Screw,sims Lp ,no.8-32 X 5/16`` ,black |
|
$ 14.18 | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw,8-18 X 0.5 ,black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5303285179 | Screw,wafer Head `8-32t X 0.500 ,black |
|
$ 13.46 | |||||
| NI | 5303289910 | Screw,8a ,1`` |
|
$ 5.67 | |||||
| NI | 316542200 | Insulator |
|
- |
