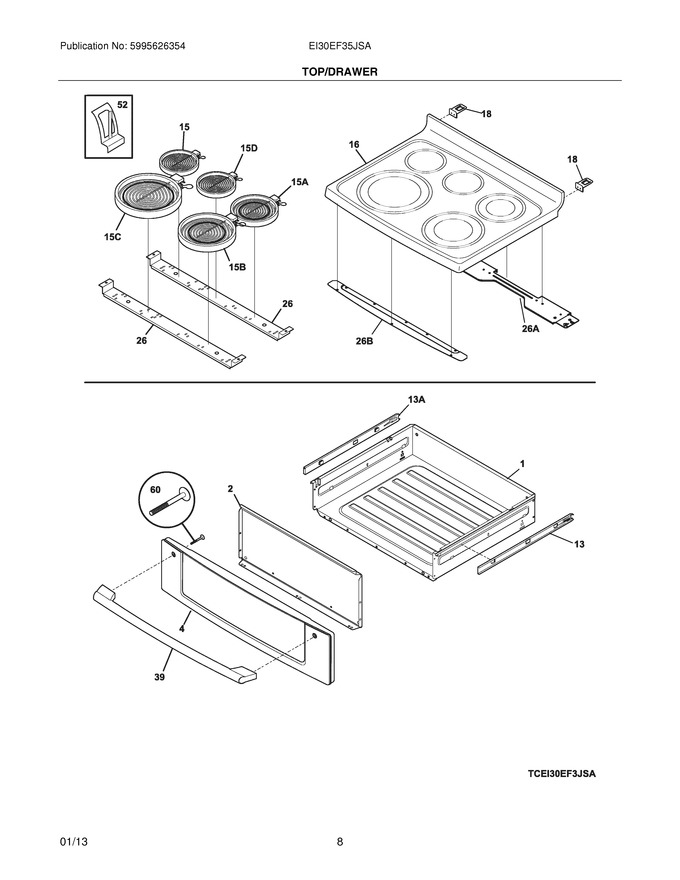

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408903		Drawer,warmer				$ 111.30
2	316403303		Liner,drawer				$ 67.79
4	316382700		Panel,drawer ,stainless				$ 258.67
13	316415000		Glide,warmer ,inner Rh   (Replaces: 316415002)				$ 58.82
16	316282978		Maintop Assembly,glass/smoothtop ,black				$ 353.81
18	316580800		Bracket-hinge,main Top			Immediately	$ 9.86
26	316427602		Channel,element Support ,(2)		Appelez-nous	-
39	316380802		Handle,door ,stainless				$ 250.86
52	316461700		Clip,element Mtg				$ 12.05
60	316439503		Screw,handle Mtg. ,no.10-24 X 1.000 ,(2)		Appelez-nous	-
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 58.82
26A	316352700		Bracket,chassis Support		Appelez-nous	-
26B	316501501		Bracket,chassis Support ,front				$ 15.33
F15	318178110		Element,surface ,6`` ,1200 ,(2) ,radiant			Immediately	$ 122.86
F15A	318198952		Element,surface ,dual ,750/1800w			Immediately	$ 250.90
F15B	5304533520		Element,dual ,6/9`` ,surface ,1400/1600w   (Replaces: 316282000)			Immediately	$ 90.14
F15C	316282101		Element,dual ,9/12`` ,surface ,1700/2700w,dual Radiant			Immediately	$ 283.03
F15D	140273621015		Element,surface ,warmer ,100 W   (Replaces: 316289800)			Immediately	$ 35.77
FNI	316580453		Harness,wiring ,surface Units		Appelez-nous	-
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	5308014215		Screw`6-20 X 0.312				$ 2.28
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
