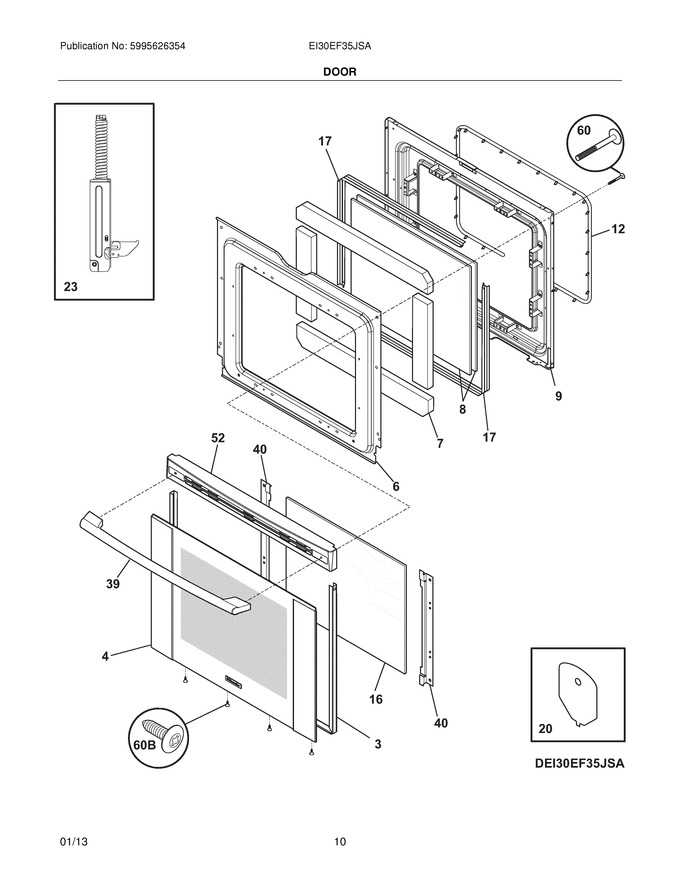

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door,3 Sided ,black ,w/tape   (Replaces: 5303935317)			Immediately	$ 58.12
4	316453038		Glass Assembly,oven Door ,w/tape ,outer				$ 266.75
6	316503800		Shield,wool				$ 106.89
7	316513000		Insulation,oven Door				$ 81.50
8	316502500		Glass,door ,inner ,(2)			Immediately	$ 115.65
9	316503614		Liner,oven Door		Appelez-nous	-
12	316405000		Seal,oven Door			Immediately	$ 179.17
16	316502601		Glass,door ,airwash   (Replaces: 316502600)			Immediately	$ 207.85
17	5304503172		Spacer,door Glass ,(2)   (Replaces: 316502101)				$ 25.79
20	316533801		Plate,distribution ,load			Immediately	$ 5.67
23	316456308		Hinge,oven Door ,gray ,(2)				$ 32.58
39	316380802		Handle,door ,stainless				$ 250.86
40	316530403		Bracket-airwash Glass Wash				$ 33.18
52	316382102		Cap,door Trim ,stainless				$ 242.03
60	5304507924		Screw,handle Mtg ,10-24 X 2.188 ,(2)   (Replaces: 316513301)			Immediately	$ 16.48
60B	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	241873301		Badge,electrolux   (Replaces: 316517500)				$ 11.15
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 14.18
NI	316483102		Label,anti-tip   (Replaces: 316483100)				$ 3.56
