SELECT A DIAGRAM

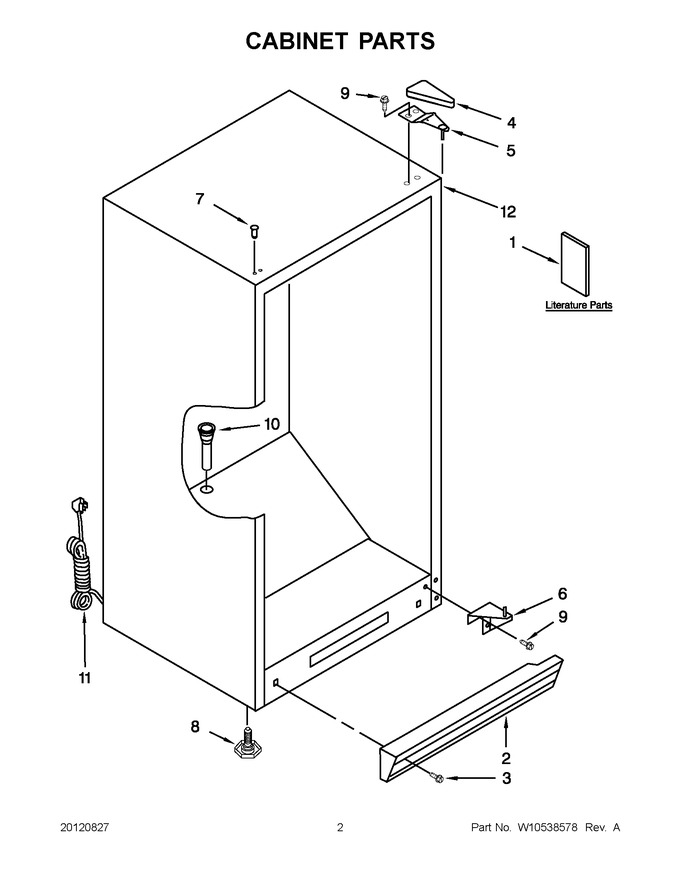

01 - Cabinet Parts
02 - Liner Parts
03 - Door Parts
04 - Unit Parts
05 - Parts Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10404291 | Energy Label/tag |
|
- | |||||
| 1 | W10326798 | Owners Manual |
|
- | |||||
| 2 | 4-60461-006 | Grille, Toe (white) |
|
$ 43.55 | |||||
| 3 | WP489478 | Screw (Replaces: 3-24004-107) |
|
$ 6.98 | |||||
| 4 | 3-80838-003 | Cover, Hinge (white) |
|
$ 4.50 | |||||
| 5 | 2-81016-105 | Hinge Assembly (white) |
|
$ 37.06 | |||||
| 6 | 4-82693-002 | Hinge, Bottom |
|
$ 72.12 | |||||
| 7 | WP2189000 | Plug, Hole (white) (Replaces: 2189000) |
|
Immediately | $ 6.66 | ||||
| 8 | WP3-82710-001 | Leg, Leveling (black) (Replaces: 3-82710-001) |
|
Immediately | $ 18.29 | ||||
| 9 | WP8204624 | Screw (Replaces: 1-80271-103) |
|
$ 14.99 | |||||
| 10 | 3-60696-001 | Grommet, Drain |
|
$ 32.33 | |||||
| 11 | 4-82399-001 | Cord, Power |
|
$ 52.24 | |||||
| 12 | N/P | Cabinet (not A Serviceable Part) |
|
- |
