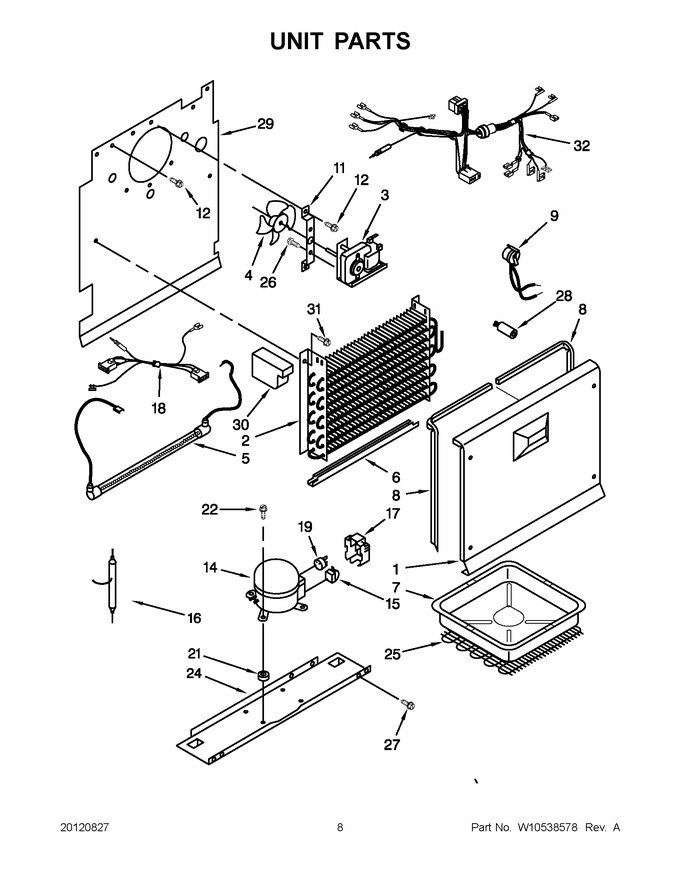

04 - Unit Parts


05 - Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10452370		Cover, Evaporator				$ 237.73
2	W10455861		Evaporator				$ 257.12
3	W11780227		Fan Motor   (Replaces: W10236142)			Immediately	$ 127.80
4	WP2169142		Blade, Fan   (Replaces: 2169142)			Immediately	$ 39.07
5	WPW10486820		Heater, Defrost   (Replaces: W10419550)				$ 202.30
6	3-82697-001		Shield, Heater		Appelez-nous	-
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	3-60180-002		Gasket, Cover Evaporator (left Side)				$ 24.93
8	4390663		Gasket, Cover Evaporator (right Side)   (Replaces: 3-60180-001)				$ 215.10
9	WPW10486820		Heater, Defrost   (Replaces: W10419550)				$ 202.30
11	2-80028-101		Bracket, Fan				$ 84.58
12	60001022		Screw   (Replaces: 3-80732-004)				$ 56.93
14	W10309994		Compressor   (Replaces: 4-32972-143)			Immediately	$ 551.61
15	WPW10466655		Relay   (Replaces: W10466655)				$ 115.81
17	WP61002138		Cover   (Replaces: W10462677)				$ 7.89
18	W10507269		Harness, Fan				$ 102.38
19	WP2183456		Overload   (Replaces: 2-34286-037)				$ 126.16
21	3-23995-014		Plastic, Grommet		Appelez-nous	-
22	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
24	WPW10470133		Pan, Compressor Mounting   (Replaces: W10470133)				$ 87.25
25	W10451951		Condenser   (Replaces: 4-82234-002)				$ 257.77
26	WP3400094		Screw   (Replaces: 1-80271-104)				$ 7.14
27	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 7.00
28	1-80275-101		Grommet		Appelez-nous	-
29	W10452115		Plate, Evaporator Mount				$ 225.55
30	W10452121		Block, Foam		Appelez-nous	-
31	WP489491		Screw   (Replaces: 3-24004-079)				$ 6.26
32	4-82408-001		Harness, Wire		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.2 Oz. (r-134a))		Appelez-nous	-
