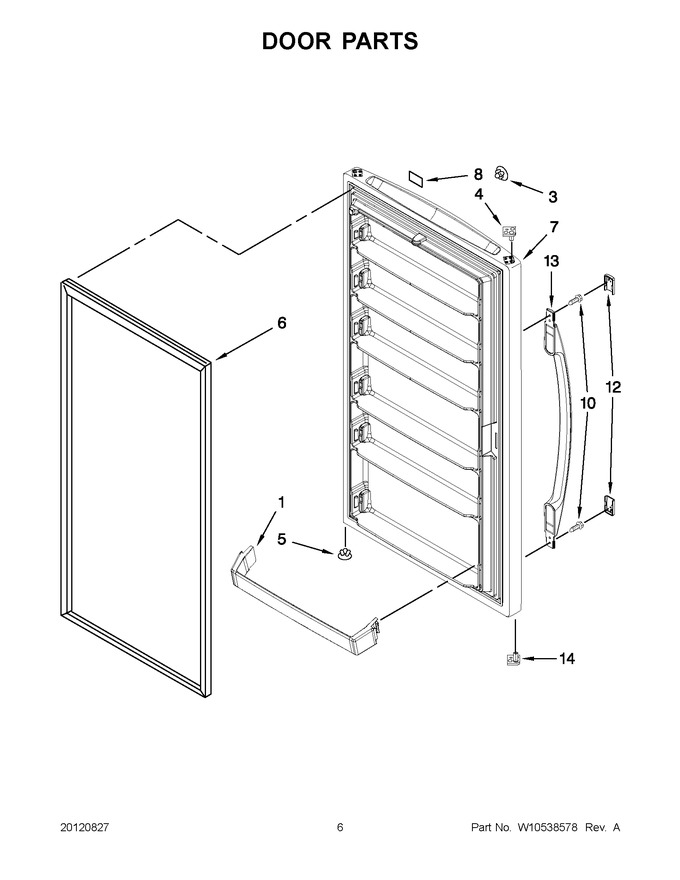

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4-65451-001 | Rail, Door (Replaces: 4-65451-001) |
|
$ 85.58 | |||||
| 3 | WP2189000 | Plug, Door (Replaces: 1-60121-001) |
|
Immediately | $ 6.66 | ||||
| 4 | 2-81124-001 | Stop, Door (natural) |
|
$ 31.15 | |||||
| 5 | 3-24898-007 | Plug, Vent |
|
$ 9.72 | |||||
| 6 | WP4-65151-004 | Gasket, Door (Replaces: 4-65151-004) |
|
$ 328.23 | |||||
| 7 | 4-82827-047 | Assembly, Door |
|
- | |||||
| 8 | WPW10170766 | Nameplate (stainless) (Replaces: W10170766) |
|
Immediately | $ 60.43 | ||||
| 10 | WP488163 | Screw (Replaces: 488208) |
|
$ 6.79 | |||||
| 12 | 2-82012-001 | Trim, Handle (white) |
|
$ 10.34 | |||||
| 13 | 4-81902-001 | Handle (white) |
|
- |
