SELECT A DIAGRAM

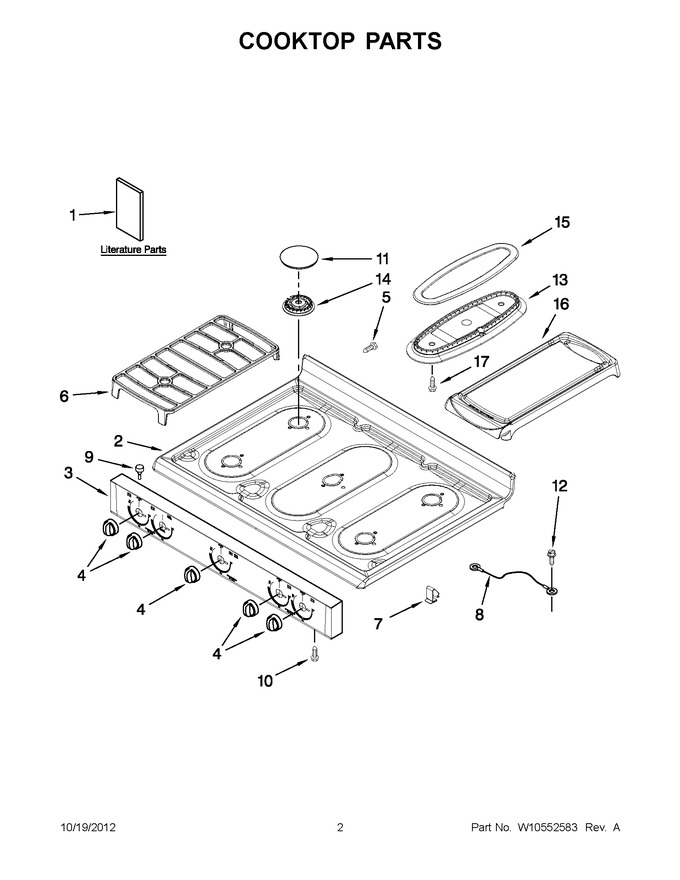

01 - Cooktop Parts


02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven And Broiler Parts


06 - Door Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203463		Guide, Use & Care		Appelez-nous	-
1	98007130		Safer Cooking Tips		Appelez-nous	-
1	W10142328		Tech Sheet		Appelez-nous	-
1	W10477536		Instructions, Installation		Appelez-nous	-
2	W10110387		Cooktop (white)				$ 200.03
3	W10110437		Panel, Manifold (white)		Appelez-nous	-
4	WPW10483313		Knob, Burner (white)   (Replaces: W10483313)				$ 19.35
5	WP98007225		Screw   (Replaces: 98007225)				$ 6.26
6	W10120692		Grate, Burner				$ 81.51
7	W11229684		Clip, Cooktop   (Replaces: 98004722)				$ 10.67
8	3184020		Wire, Ground   (Replaces: 98014544)				$ 74.50
9	W10831827		Bumper, Cooktop   (Replaces: 98013389)		Appelez-nous	-
10	W11233072		Screw   (Replaces: 98005000)			Immediately	$ 12.62
11	WP98017461		Cap, Burner (black)   (Replaces: 98017461)				$ 60.75
12	W10850756		Screw, Ground   (Replaces: 8534079)				$ 6.98
13	W10243403		Burner, Fish		Appelez-nous	-
14	WPW10243396		Burner, Standard   (Replaces: W10243396)				$ 81.38
15	98017464		Cap, Fish Burner				$ 74.39
16	WPW10133861		Griddle   (Replaces: W10133861)				$ 274.39
17	W10068560		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
