View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Backguard Parts

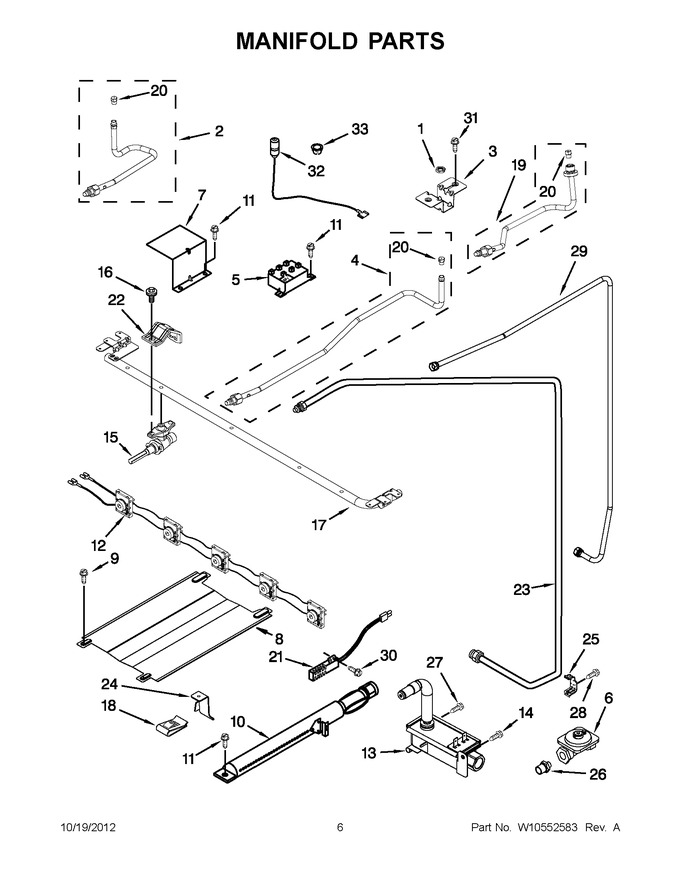

03 - Manifold Parts
04 - Chassis Parts
05 - Oven And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98017323 | Nut |
|
- | |||||
| 2 | W10110344 | Venturi (front Left) |
|
$ 77.28 | |||||
| 2 | W11661107 | Venturi (front Right) (Replaces: W10110343) |
|
$ 113.50 | |||||
| 3 | WP98017741 | Bracket, Venturi (Replaces: 98017741) |
|
$ 77.47 | |||||
| 4 | WPW10110342 | Venturi (rear) (Replaces: W10110342) |
|
$ 165.52 | |||||
| 5 | W11565127 | Spark Module (Replaces: W10110523) |
|
$ 199.46 | |||||
| 6 | W11346659 | Regulator (Replaces: W10469572) |
|
$ 239.30 | |||||
| 7 | 98007192 | Cover, Module |
|
- | |||||
| 8 | 98015099 | Spread, Flame (bake) |
|
$ 243.31 | |||||
| 9 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 12.62 | ||||
| 10 | WP98012138 | Burner, Oven (Replaces: 98012138) |
|
$ 200.93 | |||||
| 11 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 12 | W10361493 | Harness, Switch |
|
$ 190.01 | |||||
| 13 | WP98014893 | Valve, Oven (Replaces: 98014893) |
|
$ 141.73 | |||||
| 14 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 15 | WPW10141709 | Valve, Saddle (left Front, Left Rear, Right Front, Right Rear) (Replaces: W10141709) |
|
Immediately | $ 207.32 | ||||
| 15 | W10141711 | Valve, Saddle (center) |
|
$ 243.84 | |||||
| 16 | 98017517 | Screw |
|
- | |||||
| 17 | W10110091 | Pipe, Manifold |
|
- | |||||
| 18 | 98009179 | U - Nut |
|
$ 12.02 | |||||
| 19 | W10110345 | Tubing, Center |
|
$ 170.13 | |||||
| 20 | W10110355 | Orifice (center) |
|
$ 92.30 | |||||
| 20 | WP98017587 | Orifice (left Front, Left Rear, Right Front, Right Rear) (Replaces: 98017587) |
|
$ 80.62 | |||||
| 21 | W10918546 | Igniter, Hot Surface (Replaces: 98005652) |
|
Immediately | $ 55.40 | ||||
| 22 | W10421119 | Bracket, Saddle |
|
- | |||||
| 23 | WPW10469571 | Tubing (regulator To Oven Valve) (Replaces: W10469571) |
|
$ 158.23 | |||||
| 24 | 98013314 | Locator, Burner |
|
- | |||||
| 25 | 98007410 | Bracket, Regulator |
|
- | |||||
| 26 | 98007431 | Fitting 3/8to9/16 |
|
$ 110.58 | |||||
| 27 | 98013634 | Screw |
|
- | |||||
| 28 | WP98007225 | Screw (Replaces: 98007225) |
|
$ 6.26 | |||||
| 29 | WP98017171 | Tubing (manifold To Regulator) (Replaces: 98017171) |
|
$ 233.12 | |||||
| 30 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 31 | W10837674 | Screw (Replaces: W10146346) |
|
$ 6.90 | |||||
| 32 | WPW10209657 | Igniter, Top (center) (Replaces: W10209657) |
|
$ 48.56 | |||||
| 32 | WPW10209656 | Igniter, Top (left Front, Left Rear, Right Front, Right Rear) (Replaces: W10209656) |
|
Immediately | $ 73.07 | ||||
| 33 | WPW10278150 | Clip, Ignitor (Replaces: 98015032) |
|
$ 40.61 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10110353 | Lp Orifice Kit (for Use With Lp) |
|
$ 48.73 |
