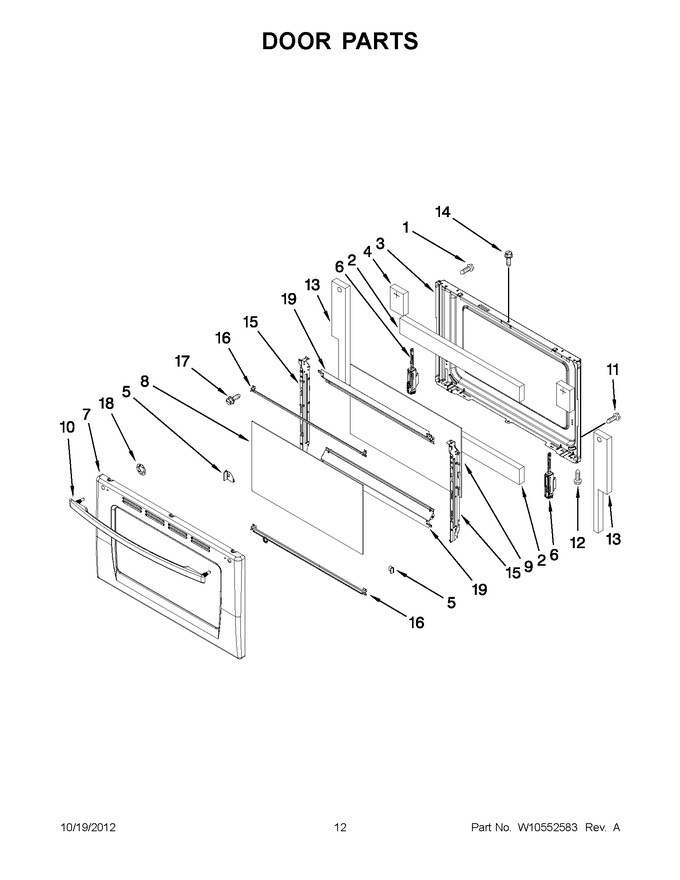

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8533843		Screw				$ 36.27
2	W10111139		Insulation				$ 118.76
3	98015563		Liner, Door				$ 84.44
4	W10111696		Insulation, Door		Appelez-nous	-
5	98004952		Clip, Glass (left Hand)		Appelez-nous	-
5	98004953		Clip, Glass (right Hand)		Appelez-nous	-
6	98017875		Hinge, Oven Door				$ 31.85
7	98015017W		Panel, Door (white)		Appelez-nous	-
8	WPW10109950		Glass, Outer   (Replaces: 98015442)				$ 196.51
9	WPW10109950		Glass, Inner   (Replaces: W10109950)				$ 196.51
10	98004940		Handle, Oven Door (white)		Appelez-nous	-
11	W11206744		Screw   (Replaces: 98008699)				$ 12.20
12	WP59002061		Screw   (Replaces: 98004993)				$ 6.98
13	W10110944		Insulation, Oven Door Side (right Hand)				$ 60.17
13	W11688816		Insulation, Oven Door Side (left Hand)   (Replaces: W10110943)				$ 22.15
14	3196166		Screw (white)   (Replaces: 98006727)				$ 6.31
15	98004629		Retainer (left Hand)		Appelez-nous	-
15	98004564		Retainer (right Hand)		Appelez-nous	-
16	98015365		Support, Glass		Appelez-nous	-
17	WP3400805		Screw   (Replaces: 98004219)				$ 6.47
18	WP98004650		Nut, Push   (Replaces: 98004650)				$ 6.26
19	98015806		Retainer, Insulation		Appelez-nous	-
