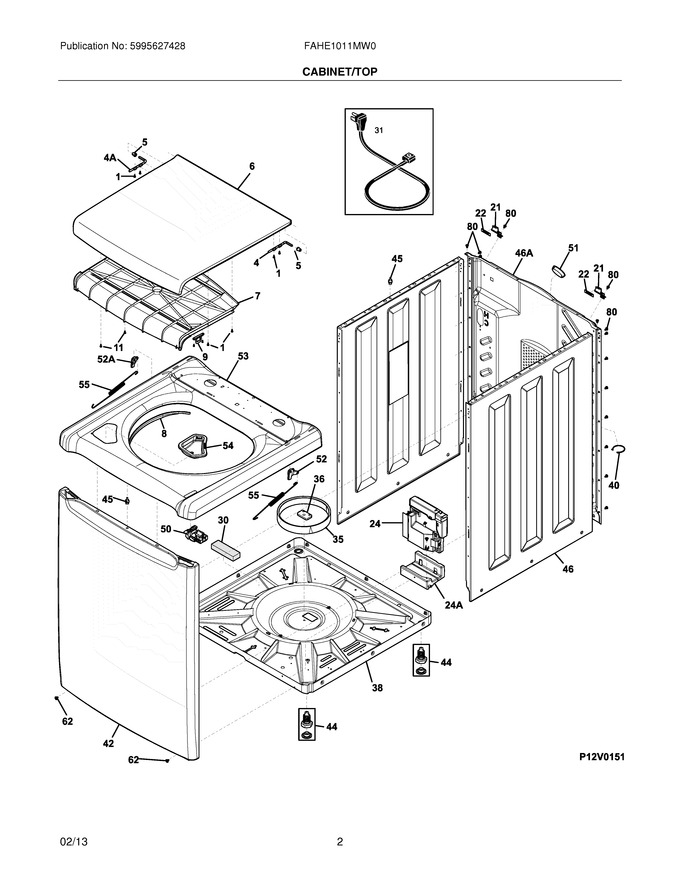

03 - Cabinet/top
05 - Motor/tub
07 - Control Panel
08 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134203900 | Screw,pan Hd Phillips ,6-32 X 0.337 ,dog Point |
|
$ 10.85 | |||||
| 4 | 137454800 | Hinge Bar,rh, Fsw |
|
$ 13.76 | |||||
| 5 | 137456300 | Grommet,hinge, Fsw |
|
$ 49.30 | |||||
| 6 | 137469510 | Lid,white |
|
- | |||||
| 7 | 137308210 | Handle,lid, Fsw |
|
- | |||||
| 8 | 137514801 | Guard,top Panel, 106c |
|
- | |||||
| 9 | 137512000 | Striker,lid, Tlw |
|
$ 17.96 | |||||
| 11 | 3204368 | Screw,lid Strike Mtg ,6-20b X 0.375 |
|
$ 13.01 | |||||
| 21 | 137278500 | Bracket,hinge |
|
- | |||||
| 22 | 137331300 | Spacer,hinger |
|
$ 22.10 | |||||
| 30 | 131663500 | Cushion,drain Hose ,base |
|
$ 23.00 | |||||
| 35 | 5308002385 | Snubber Ring |
|
$ 54.86 | |||||
| 36 | 3204380 | Shipping Block |
|
$ 12.29 | |||||
| 38 | 137493201 | Base,27, Fsw ,washed |
|
$ 222.34 | |||||
| 40 | 5303309503 | Clip,drain Hose ,back Sheet |
|
$ 7.09 | |||||
| 42 | 137363110 | Panel,front, Fsw ,white |
|
$ 218.24 | |||||
| 44 | 134548800 | Leg,leveling W/pad (Replaces: 5303309673) |
|
Immediately | $ 30.20 | ||||
| 45 | 137362600 | Pin,panel Locator |
|
$ 35.44 | |||||
| 46 | 137272610 | Panel,washer Side ,white ,lh/rh |
|
$ 213.10 | |||||
| 50 | 137353300 | Lock,lid ,external Switch |
|
Immediately | $ 110.66 | ||||
| 51 | 131453000 | Bushing,snap-in |
|
$ 10.63 | |||||
| 52 | 137532911 | Hinge Stop,w/lub, Fsw |
|
- | |||||
| 53 | 137510011 | Panel,top ,white |
|
- | |||||
| 54 | 137278848 | Dispenser,bleach, Fsw |
|
- | |||||
| 55 | 137534000 | Spring,lid Assist |
|
$ 31.76 | |||||
| 62 | 131302800 | Screw,10-16ab X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 80 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 24A | 137469200 | Base,motor Control |
|
$ 65.10 | |||||
| 46A | 137273201 | Panel,washer Back ,washed |
|
- | |||||
| 4A | 137454900 | Hinge Bar,lh, Fsw |
|
$ 13.76 | |||||
| 52A | 137532901 | Hinge Stop,w/lub, Fsw |
|
- | |||||
| F24 | 137469113NH | Control,motor ,main Pc Board (Replaces: 137469113) |
|
Immediately | $ 273.27 | ||||
| F24A | 137034600 | Screw,no.10-16x0.375 |
|
- | |||||
| F31 | 5303209428 | Bushing,strain Relief |
|
$ 17.01 | |||||
| F31 | 5304505407 | Power Cord,electric Svce (Replaces: 134501000) |
|
$ 88.20 | |||||
| F40 | 134261300 | Clip,drain Hose ,push-mount |
|
$ 12.05 | |||||
| F46A | 131205500 | Screw,cab Body ,1/4-14 X 0.625 ,side-to-base |
|
$ 13.46 |
