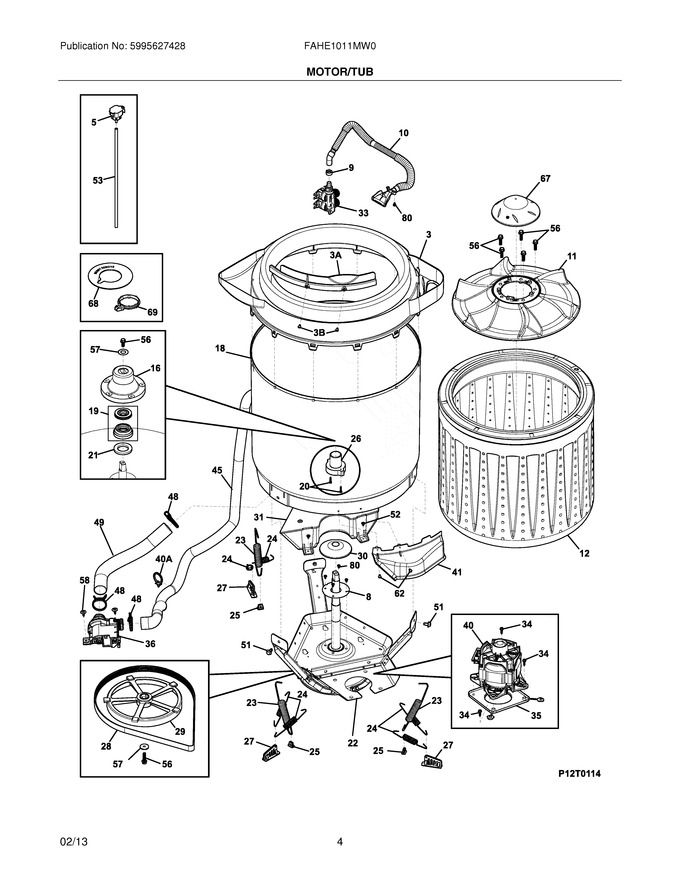

05 - Motor/tub


07 - Control Panel


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	137351800		Cover, Splash Tub,with Seal				$ 96.60
8	137363400		Cover,bearing				$ 26.57
9	5304488479		Clamp			Immediately	$ 32.09
10	137205600		Hose,fill Nozzle Asm				$ 63.79
11	137494000		Wash Plate				$ 142.91
12	137492801		Spin Tub Assy,w/o Lint Filter				$ 288.53
16	137489100		Trunnion,standard				$ 152.54
18	137326200		Tub,splash ,w/air Dome/brng		Appelez-nous	-
19	137547700		Tub Seal Kit				$ 73.03
20	3205150		Screw,tub Bearing ,8-12b X 0.750				$ 3.55
21	137272000		Grommet,seal				$ 50.19
22	137513900		Leg, Dome & Brackets,assembly				$ 499.00
23	137497110		Spring,vertical ,black				$ 48.35
24	137532600		Spring,horizontal				$ 33.92
25	137507100		Retainer,spring				$ 124.69
27	137491600		Retainer,insert, Spring				$ 23.99
28	137051400		Belt,poly V			Immediately	$ 47.48
29	137489000		Pulley,drive ,250 Mm				$ 209.79
30	137049800		Shield,slinger				$ 20.42
31	137466600		Counterweight				$ 219.82
33	137353800		Valve,2-coil,50/50 W/flo Wtr				$ 105.95
34	137470600		Screw,quad Hex ,12-14 X 0.75				$ 12.08
35	137510300		Plate,motor Isolator				$ 29.24
41	137282900		Shield,motor		Appelez-nous	-
48	5304536802		Clamp,hose ,wire   (Replaces: 131306234)			Immediately	$ 4.01
51	137466300		Screw,hex Washer Head ,5/16 X 0.625 ,special		Appelez-nous	-
52	5304488469		Screw No.10-16 X .625 Comb, Pan		Appelez-nous	-
53	5304401845		Tubing,vinyl, 16`` Long   (Replaces: 5303292722)				$ 58.12
56	137050600		Screw 5/16-18-2a,unc X 1.25				$ 17.39
57	134716700		Washer,flat   (Replaces: 137489500)				$ 2.12
58	134160900		Screw,washer Hd ,10-16ab X 0.75				$ 12.05
62	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
67	137193200		Cap,wash Plate				$ 55.02
68	131707800		Ring-drain Hose				$ 45.25
69	5303309503		Clip,drain Hose ,back Sheet				$ 7.09
80	137511100		Screw,hex Head ,10-24 X 0.500 ,type F				$ 12.05
3A	137419200		Shield,tub Cover				$ 27.08
3B	131302800		Screw,quadrex Ph ,10-16ab X 0.5			Immediately	$ 26.58
40A	137324300		Wiring Harness,motor				$ 101.35
F26	137466100		Bearing & Housing Assembly		Appelez-nous	-
F3	131901400		· Seal,splash Cover			Immediately	$ 21.69
F36	137221600		Pump,drain			Immediately	$ 189.21
F40	137326000		Motor,3 Phase ,induction			Immediately	$ 395.91
F40A	137457100		Bracket,motor, Tlw, Lc				$ 37.43
F45	134745300		Clip,drain Hose				$ 11.66
F45	134592700		Hose,drain			Immediately	$ 89.31
F45	131663500		Cushion,drain Hose ,base				$ 23.00
F45	131453000		Bushing,snap-in				$ 10.63
F45	134261300		Clip,drain Hose ,push-mount				$ 12.05
F49	131494800		Hose-pump To Tub			Immediately	$ 72.30
F5	137055800		Sensor,pressure ,low Freq Analog			Immediately	$ 90.72
