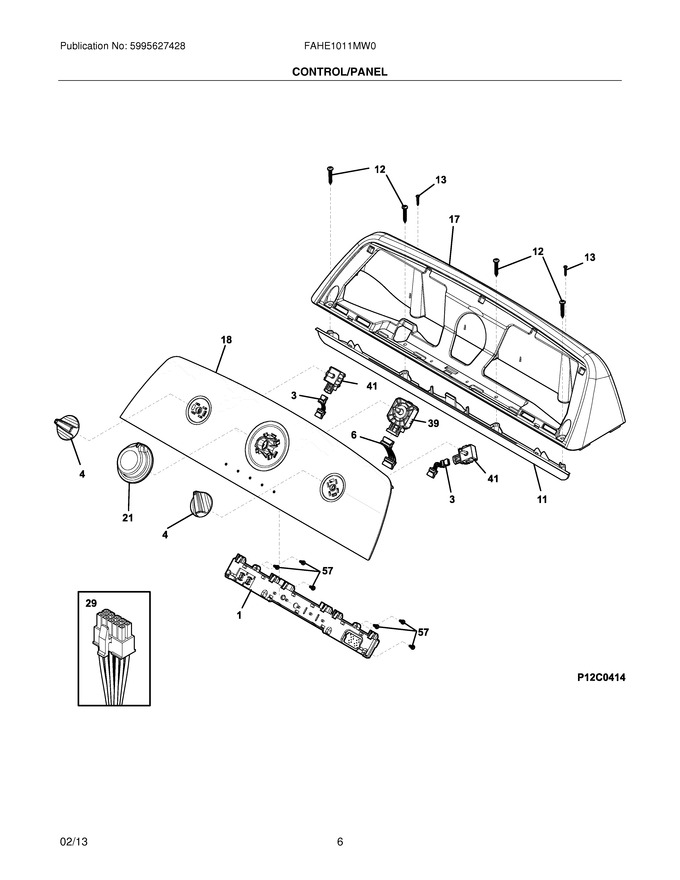

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A00540602		Board,main Assmy   (Replaces: 137332310)				$ 333.40
3	137155700		Harness Upper-1,option Switch				$ 44.89
4	137053300		Knob,switch		Appelez-nous	-
6	137348800		Harness,upper Prog Sel		Appelez-nous	-
11	137351100		Spacer,front Control		Appelez-nous	-
12	137362400		Scr-10-16x1.25``,quad Pan Hd Ab				$ 8.66
13	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
17	137054110		Console,shell J ,white		Appelez-nous	-
18	137516810		Panel,dec Control				$ 235.83
21	137489600		Knob,cycle Selector				$ 60.38
57	3205253		Screw,pan Head ,6-20b X 0.375		Appelez-nous	-
F29	137435200		Harness,main Washer Fsw				$ 215.20
F39	137493300		Switch,pts Cycle ,8 Position				$ 60.96
F41	137261000		Switch,rotary, 4 Pos				$ 102.65
NI	5304464772		Cable Tie,5.60 Inch ,plastic   (Replaces: 5303321209)				$ 10.63

    View Diagram in Separate Window       Print Part List
