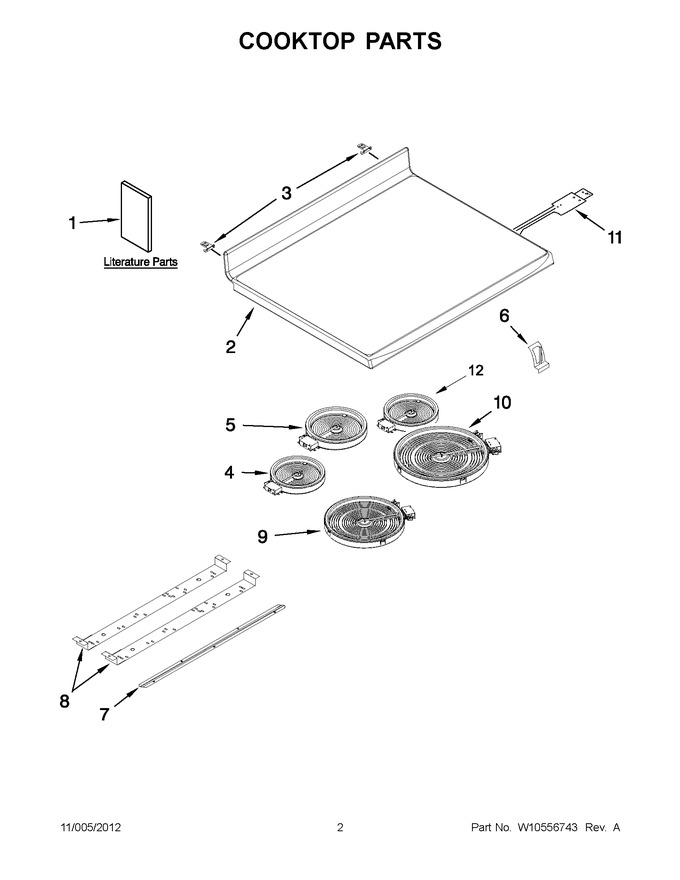

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10328279 | Use And Care Guide (french) |
|
- | |||||
| 1 | W10344641 | Installation Instructions Tech Sheet |
|
- | |||||
| 1 | W10328277 | Use & Care Guide |
|
- | |||||
| 2 | W10350539 | Cooktop (black) |
|
$ 417.27 | |||||
| 3 | W10354984 | Hinge Bracket Cooktop |
|
- | |||||
| 4 | W10350483 | Element 6`` 1200 Watts Left Rear |
|
$ 112.96 | |||||
| 5 | W10350493 | Element, Warmer 100 Watts Center Rear |
|
$ 106.07 | |||||
| 6 | W10350545 | Clip, Element |
|
$ 32.32 | |||||
| 7 | W10350543 | Bracket, Support Cooktop, Front |
|
- | |||||
| 8 | W10350542 | Channel, Element Support |
|
- | |||||
| 9 | W11517959 | Element, Dual 6/9`` Radiant 3000 Watts Left Front (Replaces: W10350485) |
|
Immediately | $ 121.00 | ||||
| 10 | W10350491 | Element, 9/12`` Dual Radiant 1200/1800 Watts Right Front |
|
- | |||||
| 11 | W10347003 | Bracket, Support |
|
- | |||||
| 12 | W10350483 | Element 6`` 1200 Watts Right Rear |
|
$ 112.96 |
