SELECT A DIAGRAM
01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts

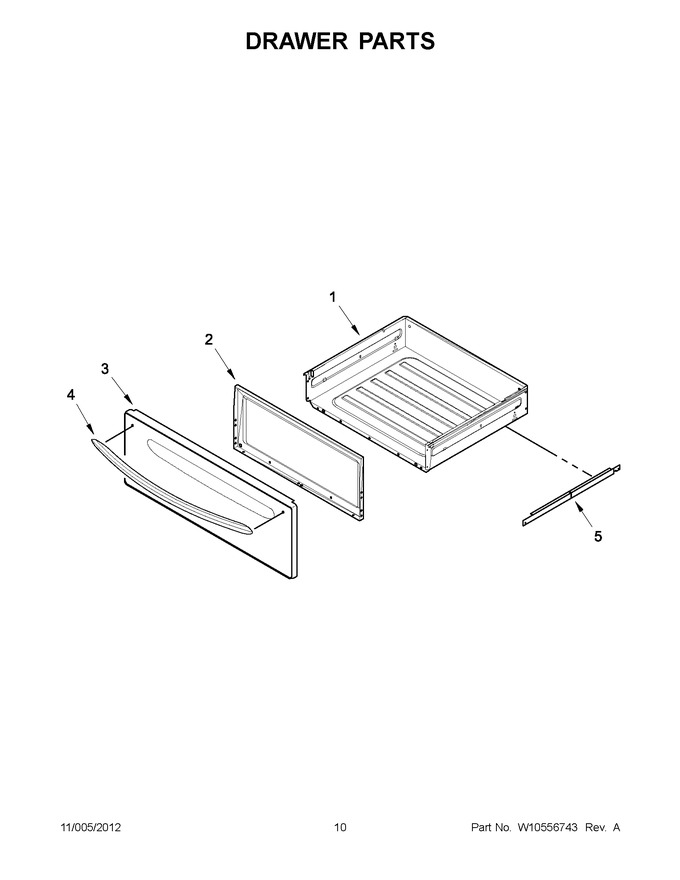

05 - Drawer Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10347679 | Drawer, Utility |
|
$ 137.27 | |||||
| 2 | W10350476 | Liner, Drawer Front Frame |
|
- | |||||
| 3 | W10507566 | Panel, Drawer (stainless) |
|
$ 240.66 | |||||
| 4 | W10350605 | Handle, Drawer (stainless) |
|
$ 125.83 | |||||
| 5 | W10347664 | Glide, Drawer (left Hand) |
|
$ 46.56 | |||||
| 5 | W10347665 | Glide, Drawer (right Hand) |
|
$ 42.06 |
