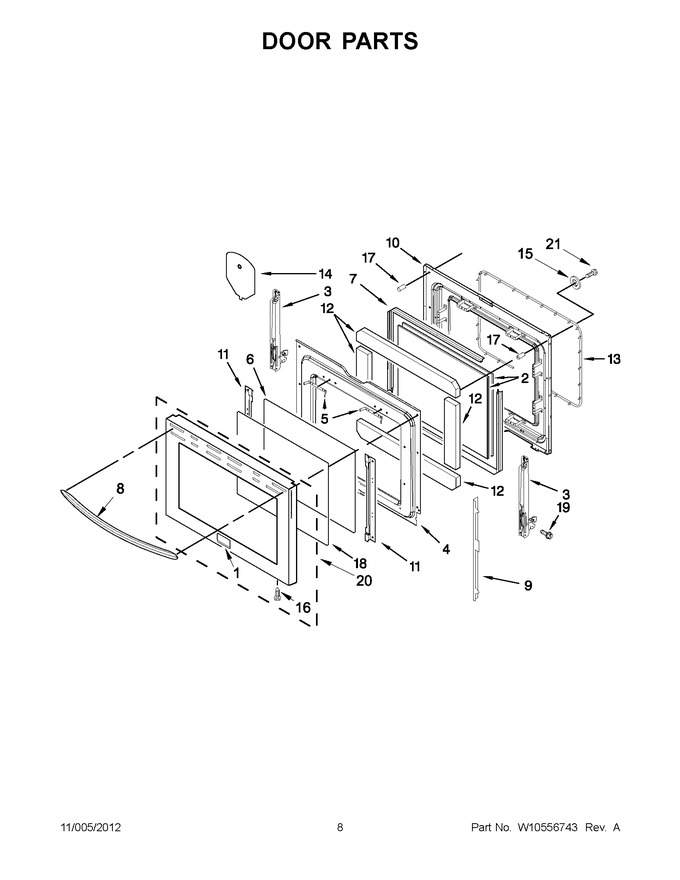

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10852683		Nameplate (stainless)   (Replaces: W10113961)				$ 104.26
2	W10350569		Glass, Inner (black)				$ 98.26
3	W10392681		Hinge, Door				$ 56.32
4	W10350551		Retainer, Door Insulation		Appelez-nous	-
5	W10350617		Bracket, Glass Spacer		Appelez-nous	-
6	W10350606		Glass, Airwash (stainless)				$ 92.12
7	W10350584		Frame, Glass Inner				$ 31.93
8	W10350605		Handle, Door (stainless)				$ 125.83
9	W10350616		Bracket, Glass Door (stainless Model Only)		Appelez-nous	-
10	W10350572		Lining, Door				$ 141.29
11	W10350589		Bracket, Glass				$ 30.71
12	W10350552		Insulation, Door				$ 39.91
13	W10350574		Seal, Door				$ 61.55
14	W10350585		Clip, Door Glass		Appelez-nous	-
15	W10370042		Washer		Appelez-nous	-
16	W10370043		Screw		Appelez-nous	-
17	W10350610		Spacer, Door Handle Stainless Model Only)				$ 8.70
18	W10357230		Glass, Oven Door Black With Foil (stainless Model Only)				$ 197.81
19	W10347322		Screw, Door Hinge		Appelez-nous	-
20	W10509029		Panel, Door-outer With Badge (stainless Model Only)		Appelez-nous	-
21	W10370041		Screw, Door (stainless)		Appelez-nous	-
