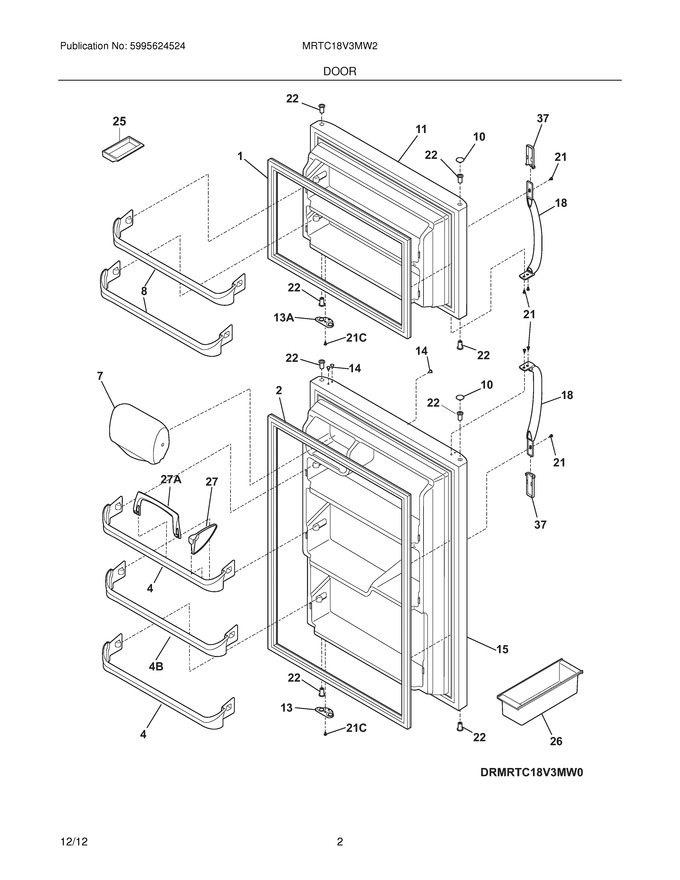

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 240535101 | Rack-door |
|
Immediately | $ 28.57 | ||||
| 7 | 240337720 | Door-dairy |
|
- | |||||
| 8 | 240535001 | Rack-door |
|
Immediately | $ 48.20 | ||||
| 10 | 240381301 | Plug-button,white ,hinge Brg Hole ,(2) |
|
Immediately | $ 18.95 | ||||
| 11 | 240580402 | Door-frzr,white,complete Assy |
|
- | |||||
| 13 | 240312421 | Door Stop,white ,ref (Replaces: 240312403) |
|
$ 15.17 | |||||
| 14 | 240494001 | Plug-button,white |
|
Immediately | $ 18.20 | ||||
| 15 | 240580602 | Door-refr,white,complete Assy |
|
- | |||||
| 18 | 218668001 | Handle-door, White |
|
Immediately | $ 66.16 | ||||
| 21 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 19.23 | ||||
| 22 | 5304507146 | Bearing-hinge,natural Color (Replaces: 240527101) |
|
Immediately | $ 7.59 | ||||
| 25 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 27 | 240396306 | Snugger-door Bin,``paddle Type`` ,water Blue |
|
- | |||||
| 37 | 215870629 | Trim-handle,2.47`` ,white ,w/satin Al Band |
|
$ 55.99 | |||||
| 13A | 240312414 | Door Stop,white ,frzr |
|
$ 19.13 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| 27A | 240396106 | Retainer-bottle |
|
- | |||||
| 4B | 240535201 | Rack-door |
|
Immediately | $ 30.34 | ||||
| F1 | 241872501 | Gasket-frzr Door,white ,magnetic |
|
Immediately | $ 134.19 | ||||
| F2 | 241872504 | Gasket-refr Door,white ,magnetic |
|
Immediately | $ 183.39 | ||||
| NI | 218676004 | Band-decorative,satin Aluminum ,handle Trim |
|
$ 57.60 |
