SELECT A DIAGRAM
01 - Cover
03 - Doors
05 - Cabinet
07 - Shelves

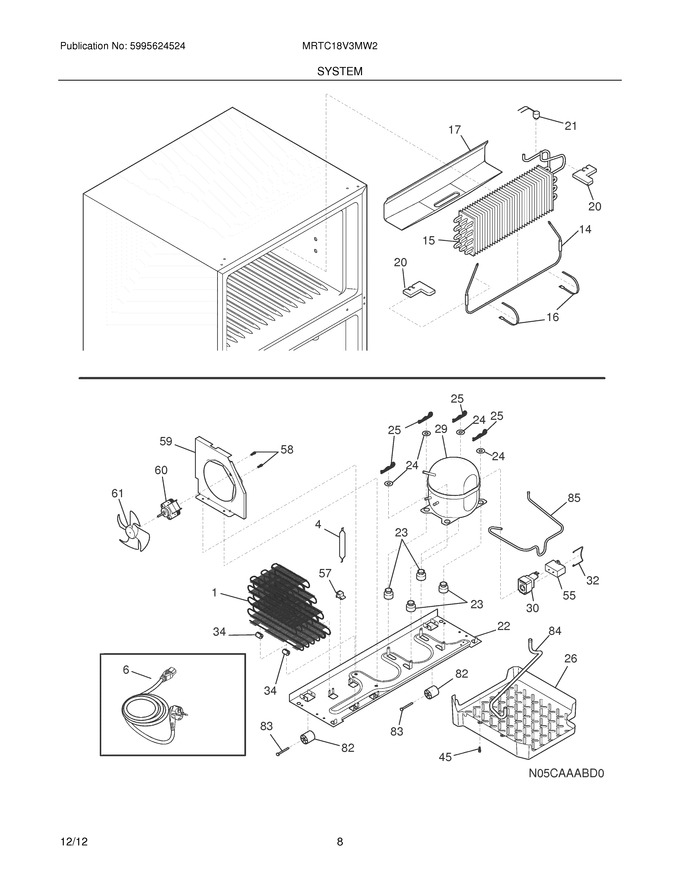

09 - System
10 - Wiring Schematic
11 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 17 | 241801302 | Trough-drain |
|
$ 83.42 | |||||
| 20 | 241551902 | Insulation Block |
|
$ 11.34 | |||||
| 22 | 241665605 | Base-compressor |
|
$ 140.34 | |||||
| 23 | 218513300 | Grommet-compr Mtg,(4) |
|
$ 42.53 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037701 | Clip-compressor Mtg |
|
$ 2.84 | |||||
| 26 | 241920605 | Pan-defrost (Replaces: 241683601) |
|
$ 53.76 | |||||
| 32 | 241809001 | Clamp,elec Cont Mtg ,compressor |
|
- | |||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 45 | 241500305 | Screw,hex Washer Head ,8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240396801 | Clamp,tube/wiring ,nylon ,black/natural |
|
$ 19.13 | |||||
| 59 | 5303918774 | Shroud,cond Fan Motor (Replaces: 241935602) |
|
Immediately | $ 186.30 | ||||
| 61 | 240524102 | Fan Blade,condenser Fan |
|
Immediately | $ 39.43 | ||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 240359601 | Tube-drain,lower |
|
$ 79.38 | |||||
| 85 | 241856904 | Tube-connector,suction |
|
$ 43.73 | |||||
| F1 | 241785404 | Condenser,dynamic |
|
$ 169.39 | |||||
| F14 | 240356223 | Defrost Heater,220 V |
|
- | |||||
| F15 | 241547749 | Evaporator . |
|
- | |||||
| F21 | 5303918202 | Thermostat-defrost,kit |
|
Immediately | $ 20.21 | ||||
| F29 | 240550927 | Compressor |
|
- | |||||
| F30 | 241707714 | Starter-ptc |
|
$ 59.54 | |||||
| F4 | 5303305677 | Drier-filter,r134a System (Replaces: 218944002) |
|
Immediately | $ 31.67 | ||||
| F55 | 218909908 | Capacitor,run |
|
$ 177.19 | |||||
| F6 | 241723307 | Cord-service,britain |
|
- | |||||
| F60 | 242018402 | Motor-condenser Fan,220-240v . |
|
- | |||||
| FNI | 241735901 | Bracket Assembly,receptacle ,service Cord |
|
- | |||||
| FNI | 241832601 | Harness-wiring,freezer |
|
- | |||||
| NI | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| NI | 240555002 | Screw,hex Washer Head ,8-32 X 0.375 (Replaces: 218897004) |
|
Immediately | $ 13.46 | ||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 |
