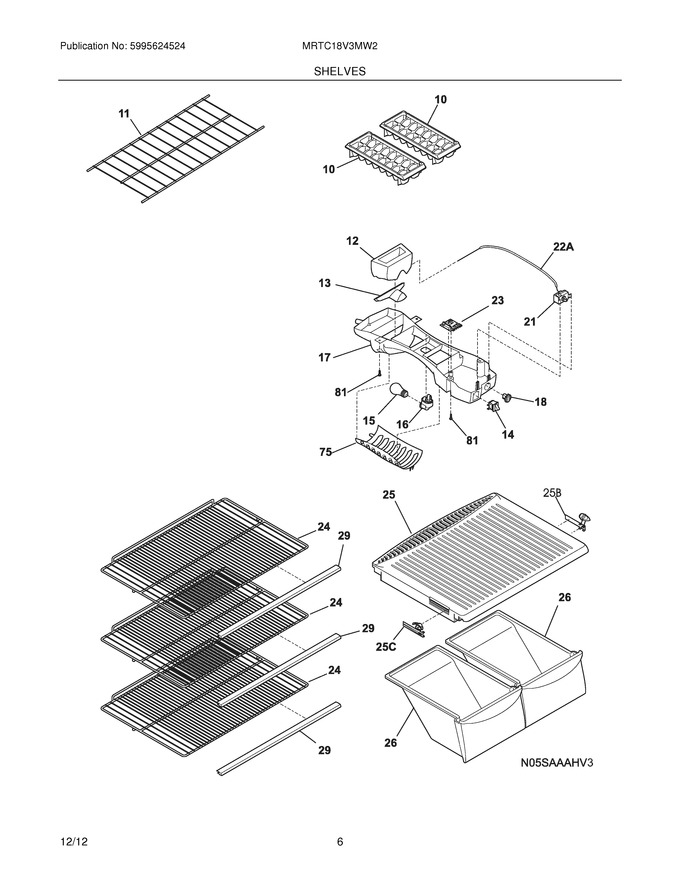

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray,ice Cube ,plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 240358004 | Shelf,freezer |
|
Immediately | $ 47.93 | ||||
| 12 | 240545001 | Diffuser,air ,top |
|
$ 44.61 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 17 | 240368002 | Control Box (Replaces: 240368003) |
|
$ 134.23 | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240360906 | Shelf,sliding ,wire (Replaces: 240360902) |
|
Immediately | $ 99.35 | ||||
| 25 | 240364784 | Cover-crisper Pan |
|
- | |||||
| 26 | 240364508 | Pan-crisper,(2) |
|
- | |||||
| 29 | 240430707 | Trim-shelf |
|
- | |||||
| 75 | 240515601 | Shield-light |
|
$ 53.73 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 22A | 240468202 | Tube,sensor Sleeve ,31 Inch ,plastic ,white (Replaces: 240468201) |
|
$ 9.10 | |||||
| 25B | 241613501 | Control-humidity,rh |
|
Immediately | $ 12.05 | ||||
| 25C | 241613502 | Control-humidity,lh |
|
$ 47.78 | |||||
| F14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| F15 | 218814402 | Light Bulb |
|
$ 55.36 | |||||
| F16 | 241559801 | Socket-light/lamp (Replaces: 240433702) |
|
$ 72.68 | |||||
| F21 | 5304458064 | Control-temperature |
|
- | |||||
| F23 | 242011004 | Control-defrost,adaptive Timer ,220/240 V,pc Board |
|
- | |||||
| FNI | 242081702 | Wiring Harness,control Box |
|
- |
