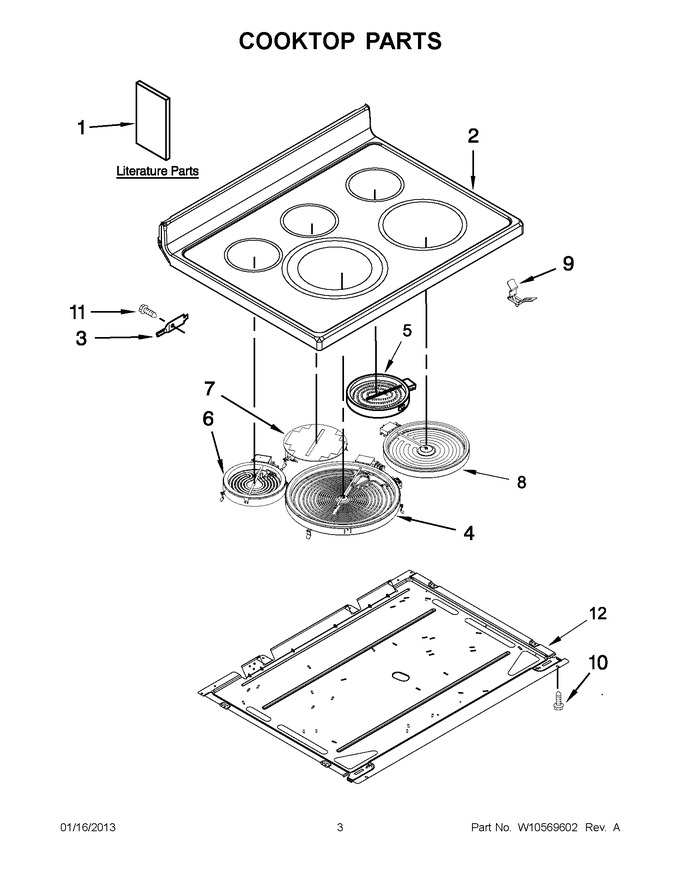

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10392922 | Use And Care Guide |
|
- | |||||
| 1 | W10522406 | Tech Sheet, English |
|
- | |||||
| 1 | W10522407 | Tech Sheet, French |
|
- | |||||
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | W10400064 | Guide, Quick Start |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 2 | W10441396 | Cooktop (black) (Replaces: W10380671) |
|
$ 550.03 | |||||
| 3 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.30 | ||||
| 4 | WPW10297138 | Element, 3000 Watt (left Front) (Replaces: W10297138) |
|
$ 334.94 | |||||
| 5 | W11171119 | Element (1200w) (right Rear) (Replaces: 8273994) |
|
Immediately | $ 164.01 | ||||
| 6 | WPW10342780 | Element, 1300w Dual (left Rear) (Replaces: W10342780) |
|
Immediately | $ 130.79 | ||||
| 7 | W11047668 | Element, Warm (center) (Replaces: W10476723) |
|
$ 113.96 | |||||
| 8 | WPW10251108 | Element, 3200 W (right Front) (Replaces: W10251108) |
|
Immediately | $ 201.29 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 10 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 11 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 12 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 122.99 |
