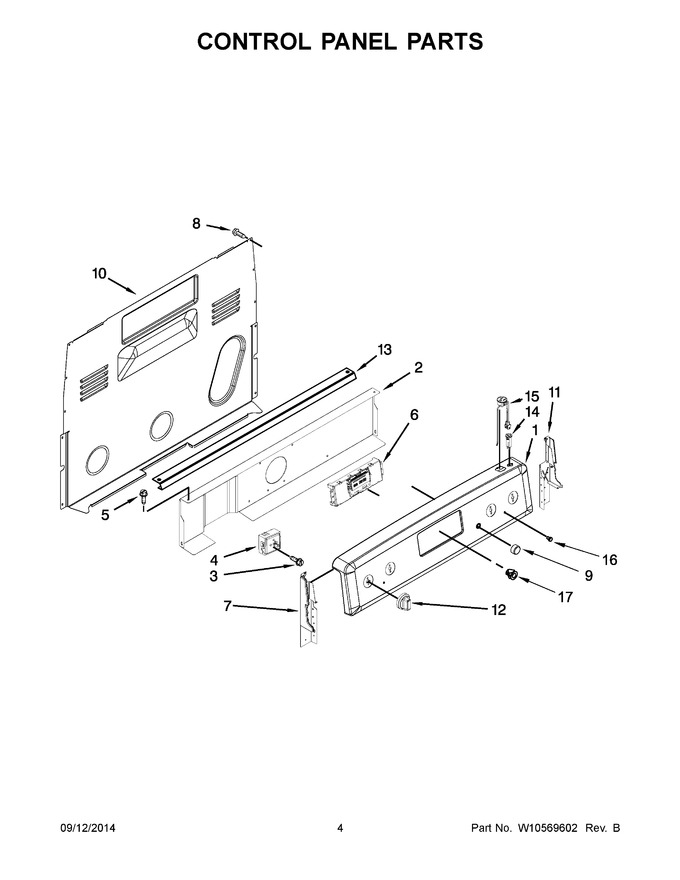

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10339453 | Panel, Backguard (stainless) |
|
$ 248.71 | |||||
| 2 | W10134247 | Shield, Heat |
|
Immediately | $ 307.56 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.47 | ||||
| 4 | WPW10391743 | Switch, Infinite (left Front) (Replaces: W10391743) |
|
Immediately | $ 111.18 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 6 | WPW10586726 | Control (mrc) (Replaces: W10586723) |
|
$ 463.85 | |||||
| 7 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 131.85 | |||||
| 8 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 9 | W10918209 | Button, Keep Warm (stainless) (Replaces: W10315961) |
|
$ 17.33 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 187.75 | |||||
| 11 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 36.40 | |||||
| 12 | WPW10370186 | Knob (stainless) (Replaces: W10370186) |
|
Immediately | $ 19.24 | ||||
| 13 | W10525121 | Bracket, Console Mounting |
|
$ 84.73 | |||||
| 14 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 48.43 | ||||
| 15 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 16 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 17 | W10315960 | Bezel, Keep Warm (stainless) |
|
$ 63.42 | |||||
| 4A | WPW10411934 | Switch, Infinite (right Front And Left Rear) (Replaces: W10411934) |
|
Immediately | $ 98.45 | ||||
| 4B | 5500-287 | Switch, Infinite (right Rear) (Replaces: 3148951) |
|
Immediately | $ 47.15 |
