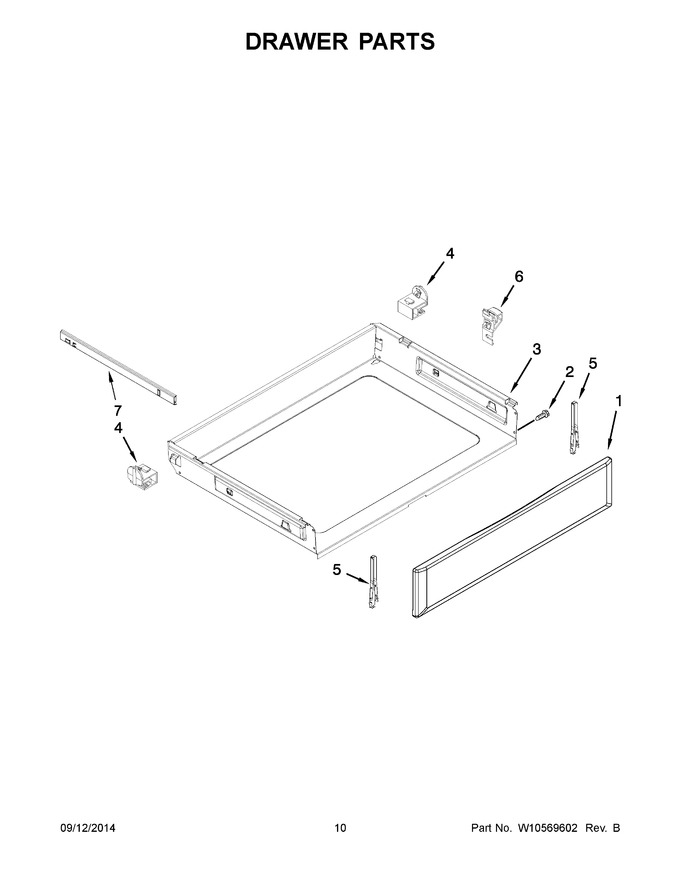

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10289104 | Panel, Drawer (stainless) (Replaces: W10289104) |
|
$ 193.45 | |||||
| 2 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 3 | W10813962 | Drawer, Storage (Replaces: W10300032) |
|
Immediately | $ 124.34 | ||||
| 4 | W10763667 | Glide, Drawer Rear (Replaces: W10317899) |
|
Immediately | $ 96.91 | ||||
| 5 | WPW10318027 | Bracket, Drawer (Replaces: W10318027) |
|
$ 103.00 | |||||
| 6 | W10763667 | Glide, Drawer Front (Replaces: W10317898) |
|
Immediately | $ 96.91 | ||||
| 7 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 92.75 | ||||
| 7A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 92.68 |
