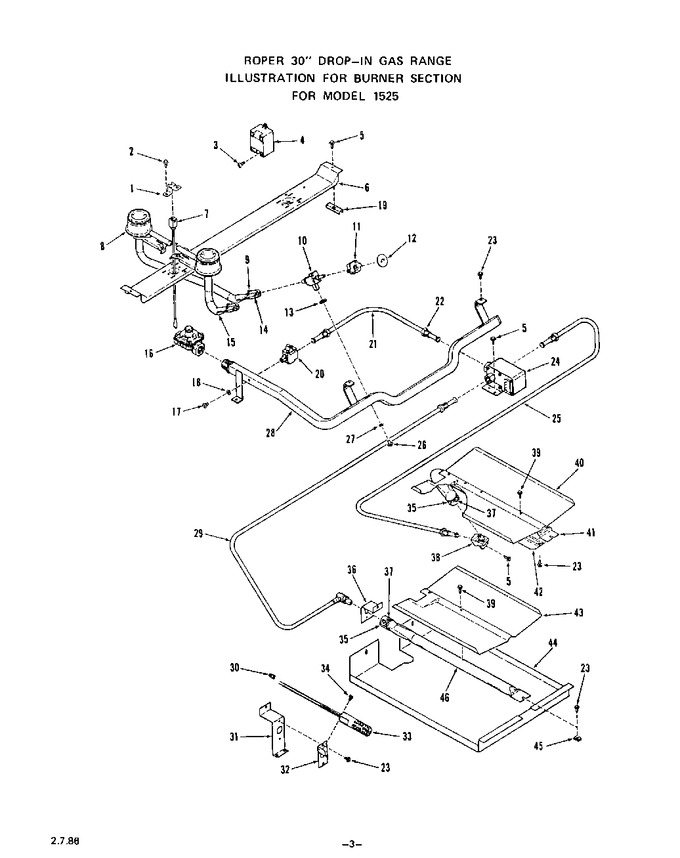

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 312453 | Bracket-spark Igniter (lt. Or Rt.) |
|
- | |||||
| 2 | 327320 | Screw 10-16x7/16`` |
|
- | |||||
| 3 | 105667 | Screw 6-32x3/8`` |
|
- | |||||
| 4 | 320990 | Spark Module |
|
- | |||||
| 5 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 7.16 | |||||
| 6 | 318705 | Support - Top Burner |
|
- | |||||
| 7 | 312455 | Electrode - Spark Ignitor (left) |
|
- | |||||
| 7 | 312598 | Electrode - Spark Ignitor (right) |
|
- | |||||
| 8 | 318669 | Rear Top Burner (lt Or Rt) |
|
- | |||||
| 9 | 301911 | Adjustment Screw-air Shutter |
|
- | |||||
| 10 | 324975 | Gas Valve (4 Req) |
|
- | |||||
| 11 | 310253 | Switch-gas Valve (4 Req) |
|
- | |||||
| 12 | 306589 | Shield - Gas Value (4 Req) |
|
- | |||||
| 13 | 313563 | Silicone Rubber Gasket (1 Ea For Keys 10 & 20) |
|
- | |||||
| 14 | 301910 | Air Shutter |
|
- | |||||
| 15 | 318668 | Front Top Burner |
|
- | |||||
| 16 | 324529 | Pressure Regulator |
|
- | |||||
| 17 | 311455 | Screw 1/4``-20 |
|
- | |||||
| 18 | 311692 | Gasket |
|
- | |||||
| 19 | 333268 | Spacer - Burner Support |
|
- | |||||
| 20 | 326830 | Shut Off Valve |
|
- | |||||
| 21 | 315075 | Tubing 3/8`` (control Valve To Broiler Orifice) |
|
- | |||||
| 22 | 113384 | Inverted Nut 3/8`` |
|
- | |||||
| 23 | DE81-07393A | Screw 10 - 32 X 17/32`` (Replaces: 102428) |
|
$ 174.11 | |||||
| 24 | 306267 | Control Valve |
|
- | |||||
| 25 | 315073 | Tubing 3/8`` (control Valve To Broiler Burner) |
|
- | |||||
| 26 | 311455 | Mounting Screw (1 Ea For Keys 10 & 20) |
|
- | |||||
| 27 | 311692 | Silicone Rubber Gasket (for Key 26) |
|
- | |||||
| 28 | 323399 | Manifold Pipe |
|
- | |||||
| 29 | 314709 | Tubing 3/8`` W/orifice (control Valve To Oven Burner) |
|
- | |||||
| 30 | 103595 | Wire Connector (4 Req) |
|
- | |||||
| 31 | 315058 | Mounting Bracket |
|
- | |||||
| 32 | 311689 | Bracket-igniter |
|
- | |||||
| 33 | WG02F04373 | Igniter - Bake Or Broil (Replaces: 319887) |
|
Immediately | $ 109.23 | ||||
| 34 | 105771 | Screw 10 - 32 X 1/4`` |
|
- | |||||
| 35 | 312988 | Air Shutter |
|
- | |||||
| 36 | 315057 | Bracket - Orifice Fitting (oven Burner) |
|
- | |||||
| 37 | 312989 | Adjustment Screw -air Shutter |
|
- | |||||
| 38 | 315437 | Orifice Fitting - Broiler Burner |
|
- | |||||
| 39 | 97217 | Screw 8 - 32x3/8`` |
|
- | |||||
| 40 | 325271 | Upper Baffle - Broiler Burner |
|
- | |||||
| 41 | 318758 | Broiler Burner (inc. Keys 40 & 42) |
|
- | |||||
| 42 | 302904 | Lower Baffle - Broiler Burner |
|
- | |||||
| 43 | 316344 | Baffle - Oven Burner |
|
- | |||||
| 44 | 313999 | Baffle - Oven Burner |
|
- | |||||
| 45 | 108069 | Speed Nut 10 - 32 |
|
- | |||||
| 46 | 316824 | Oven Burner W/baffle |
|
- |
