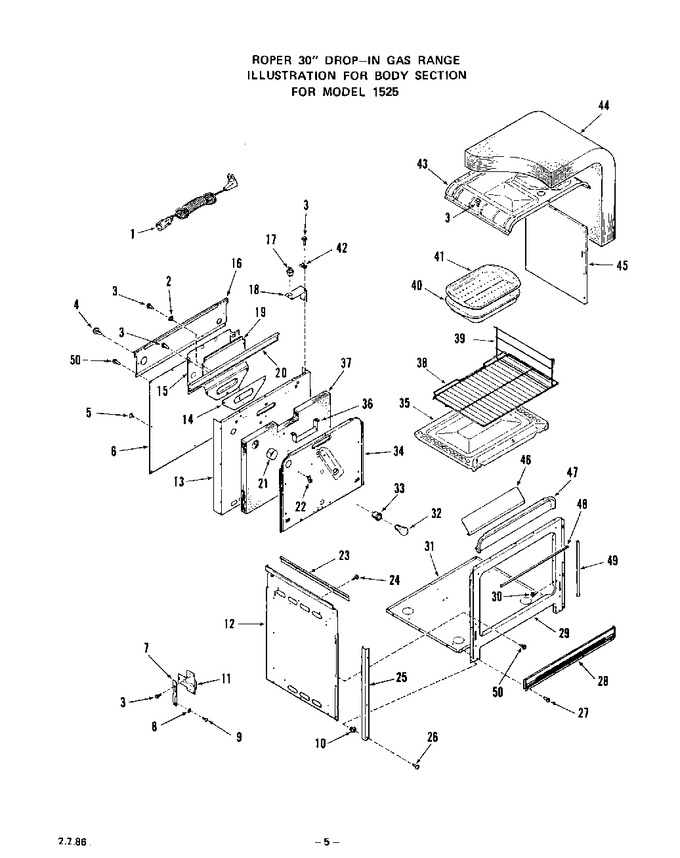

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	235822		Range Service Cord		Appelez-nous	-
2	109156		Lockwasher		Appelez-nous	-
3	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
4	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
5	70588		Clip		Appelez-nous	-
6	324014		Rear Wire Cover		Appelez-nous	-
7	322613		Hinge Angle - Lt Or Rt		Appelez-nous	-
8	21067		Washer		Appelez-nous	-
9	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
10	330031		Spacer-expansion Nut (6 Req)   (Replaces: 312605)			Immediately	$ 14.48
11	322609		Hinge Box Asm. Lt Or Rt		Appelez-nous	-
12	315050		Insulation Retainer (left 15250a, 15251a Models)		Appelez-nous	-
12	330836		Insulation Retainer (left 15252a, 15253a Models)		Appelez-nous	-
12	330834		Insulation Retainer (right 152521, 15253a Models)		Appelez-nous	-
12	315048		Insulation Retainer (right 15250a, 15251a Models)		Appelez-nous	-
13	324010		Main Back		Appelez-nous	-
14	315008		Gasket - Flue Deflector		Appelez-nous	-
15	324020		Shield - Flue Deflector		Appelez-nous	-
16	324162		Upper Wire Cover W/flue Insulation Asm.		Appelez-nous	-
17	232150		Disconnect		Appelez-nous	-
18	315059		Bracket - Module		Appelez-nous	-
19	324012		Flue Deflector		Appelez-nous	-
20	315054		Support - Flue		Appelez-nous	-
21	113500		Insulation Retainer - Oven Light		Appelez-nous	-
22	115533		Clip-thermostat Bulb		Appelez-nous	-
23	316928		Side Trim - Burner Box Bottom (lt Or Rt)		Appelez-nous	-
24	105799		Screw 10abx1		Appelez-nous	-
25	306844		Side Trim (left)		Appelez-nous	-
25	306842		Side Trim (right)		Appelez-nous	-
26	314124		Screw 8abx5/8``		Appelez-nous	-
27	316849		Screw-10-32x1/2``		Appelez-nous	-
28	314707		Bottom Trim		Appelez-nous	-
29	315013		Front Frame (15250a Models)		Appelez-nous	-
29	332367		Front Frame (15251a, 15252a, 15253a Models)		Appelez-nous	-
30	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 174.11
31	324008		Main Bottom		Appelez-nous	-
32	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
33	295974		Holder-oven Lamp Bulb		Appelez-nous	-
34	332363		Oven Back (15251a, 15252a, 15253a Models)		Appelez-nous	-
34	328850		Oven Back (15250a Models)		Appelez-nous	-
35	295047		Oven Bottom (15250a Models)		Appelez-nous	-
35	332370		Oven Bottom (15251a, 15252a, 15253a Models)		Appelez-nous	-
36	282156		Insulation Retainer - Flue		Appelez-nous	-
37	315435		Insulation - Oven Back		Appelez-nous	-
38	305362		Oven Rack (2 Req)		Appelez-nous	-
39	305568		Oven Rack Guide (left)		Appelez-nous	-
39	305569		Oven Rack Guide (right)		Appelez-nous	-
40	293098		Broiler Pan (15250a, 15251a Models)		Appelez-nous	-
40	331592		Broiler Pan (15252a, 15253a Models)		Appelez-nous	-
41	293099		Broiler Pan Grid (15250a, 15251a Models)		Appelez-nous	-
41	326297		Broiler Pan Grid (15252a, 15253a Models)		Appelez-nous	-
42	106767		Clip (for Key 1)		Appelez-nous	-
43	328853		Oven Top (15250a Models)		Appelez-nous	-
43	332366		Oven Top (15251a, 15252a, 15253a Models)		Appelez-nous	-
44	282636		Insulation - Oven Top & Sides (1 Piece)		Appelez-nous	-
45	328852		Oven Sides (left 15250a Models)		Appelez-nous	-
45	332365		Oven Sides (left 15251a, 15252a, 15253a Models)		Appelez-nous	-
45	328851		Oven Sides (right 15250a Models)		Appelez-nous	-
45	332364		Oven Sides (right 15251a, 15252a, 15253a Models)		Appelez-nous	-
46	281574		Heat Shield		Appelez-nous	-
47	332368		Panel - Broiler Front (15251a, 15252a, 15253a Models)		Appelez-nous	-
47	288762		Panel - Broiler Front (15250a Models)		Appelez-nous	-
48	305065		Top Seal - Oven Door		Appelez-nous	-
49	292912		Side Seal - Oven Door (rt Or Lt)		Appelez-nous	-
50	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
