Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 286628 Screw 10-32x5/16`` Appelez-nous -
2 106462 Washer Appelez-nous -
3 104520 Screw 10 - 32x3/8`` Appelez-nous -
4 239113 Screw 10-32x3/8`` Appelez-nous -
5 319447 Screw 8-32 X 1/2`` Appelez-nous -
6 330925 Hinge - Oven Door (lt Or Rt) Appelez-nous -
7 326539 Frame - Oven Door Appelez-nous -
8 239764 Keps Nut 8-32 Appelez-nous -
9 318939 Handle-oven Door Appelez-nous -
10 331704 Screw Appelez-nous -
11 328831 Oven Door Glass Appelez-nous -
12 301888 Insulation Appelez-nous -
13 332372 Lining - Oven Door (15251a, 15252a, 15253a Models) Appelez-nous -
13 328830 Lining - Oven Door (15250a Models) Appelez-nous -
14 328861 Operating Guide Appelez-nous -
14 332534 Main 15252a, 15253a Models Appelez-nous -
14 320281 Switches - Gas Valve Appelez-nous -
14 333235 Repair Parts List Appelez-nous -
14 330223 Gas Use & Care Guide Appelez-nous -
14 328860 Installation Guide Appelez-nous -
14 321358 Insulation Retainer Appelez-nous -
328859 Main 15250a, 15251a Models Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

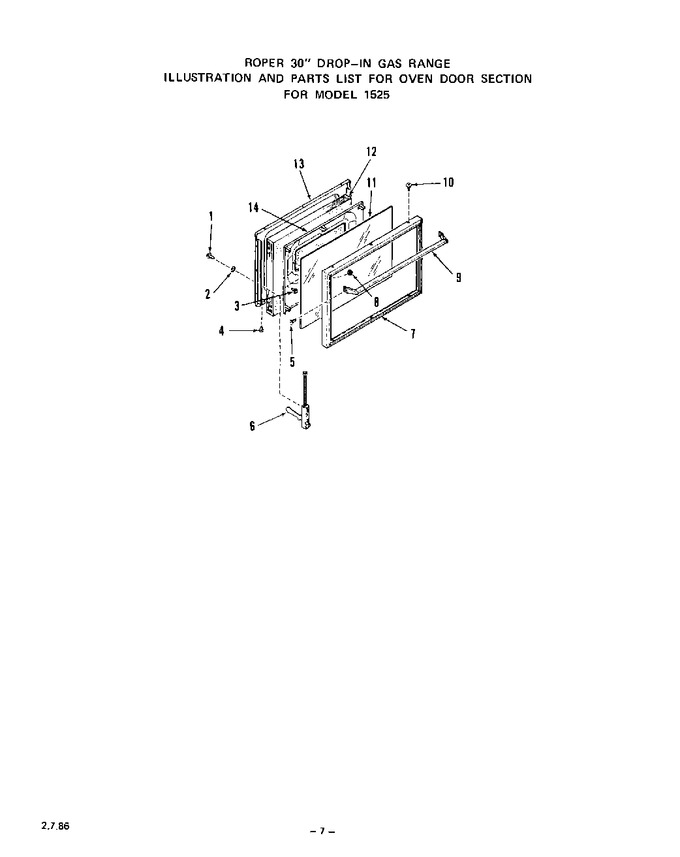

Diagram for 1525^2A
