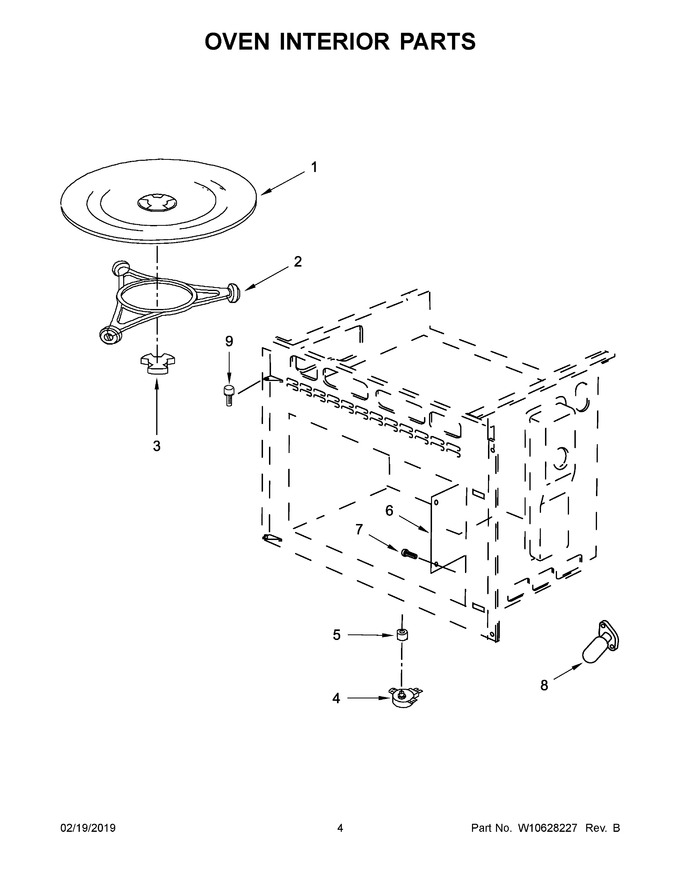

03 - Oven Interior Parts
04 - Top Venting Parts
05 - Bottom Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10618210 | Turntable, Glass (Replaces: W10618210) |
|
$ 68.93 | |||||
| 2 | W10422369 | Support, Turntable With Rollers (Replaces: W10618211) |
|
$ 52.93 | |||||
| 3 | W10618212 | Turntable, Hub |
|
$ 9.91 | |||||
| 4 | W10627452 | Motor, Turntable |
|
$ 53.94 | |||||
| 5 | 4375252 | Gasket, Turntable Motor Shaft |
|
$ 38.27 | |||||
| 6 | W10628171 | Plate, Mica Inlet Cover |
|
- | |||||
| 7 | W10628172 | Pin, Mica Plate |
|
- | |||||
| 8 | W10627388 | Bulb, Cavity Cc3a 25 Watt |
|
Immediately | $ 12.88 | ||||
| 9 | W10898569 | Screw, Hinge |
|
- |
