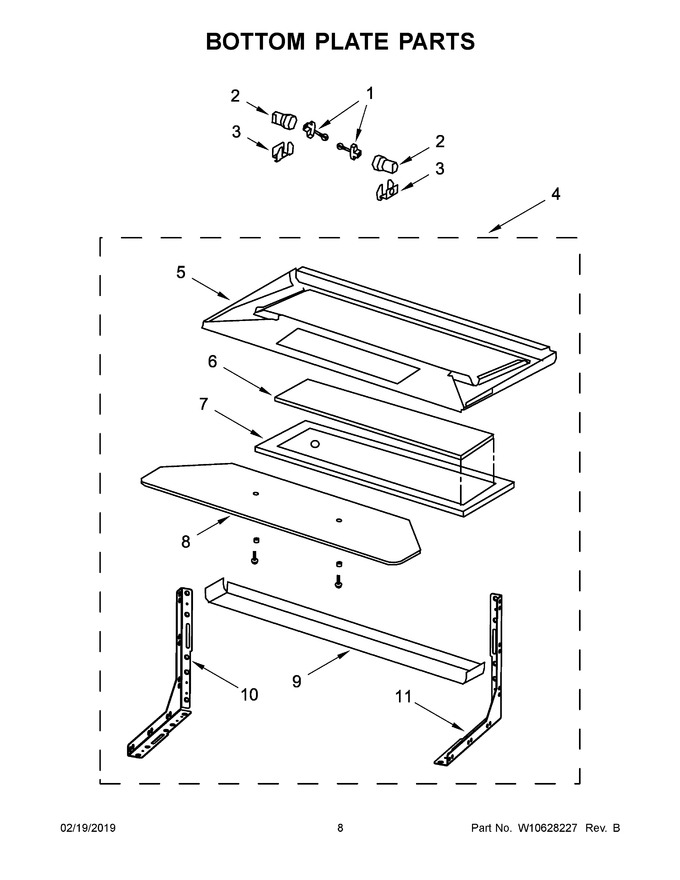

01 - Bottom Plate Parts
01 - Cover Sheet
02 - Control Panel And Door Parts
02 - Top Venting Parts
03 - Oven Interior Parts
04 - Top Venting Parts
05 - Bottom Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10709921 | Bulb, Cooktop Halogen G9 25 Watt 120 Volt (Replaces: W10618217) |
|
Immediately | $ 19.10 | ||||
| 2 | W10627450 | Socket, Bulb |
|
$ 25.00 | |||||
| 3 | W10627451 | Bracket, Lamp Socket |
|
$ 31.64 | |||||
| 4 | W10627352 | Assembly, Bottom Plate With L-brackets |
|
$ 1,260.49 | |||||
| 5 | W10627404 | Frame, Lower Assembly |
|
$ 81.86 | |||||
| 6 | W10610033 | Kit, Charcoal Filter |
|
Immediately | $ 38.36 | ||||
| 7 | W10618216 | Filter, Grease |
|
$ 55.16 | |||||
| 8 | W10618218 | Visor, Glass |
|
$ 291.06 | |||||
| 9 | W10627630 | Trim, Rear |
|
$ 54.69 | |||||
| 10 | W10627631 | L-bracket, Left |
|
$ 71.43 | |||||
| 11 | W10627632 | L-bracket, Right |
|
$ 59.53 |
