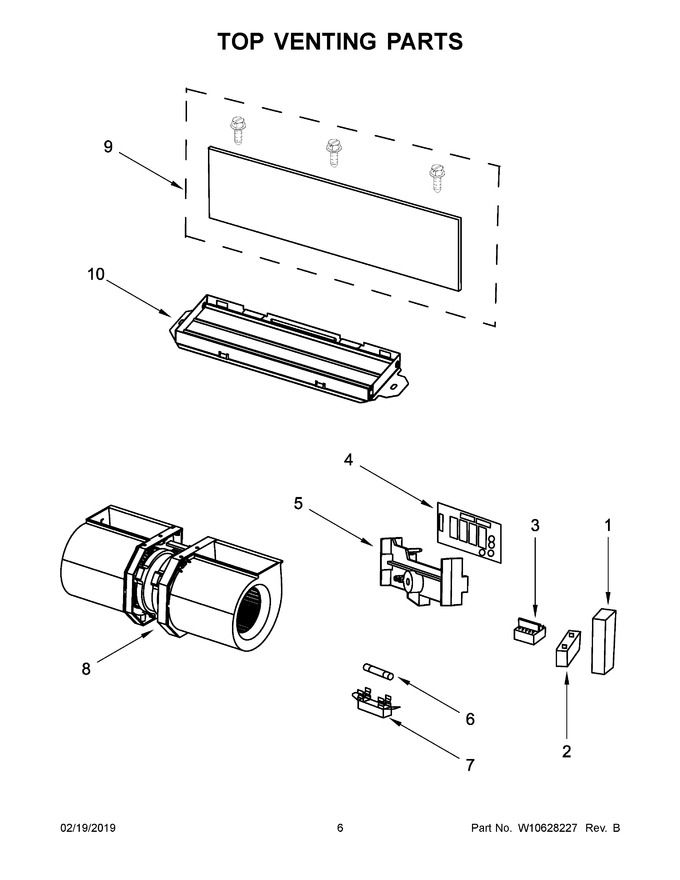

02 - Top Venting Parts
03 - Oven Interior Parts
04 - Top Venting Parts
05 - Bottom Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10627456 | Resistor, Power 30 Ohm 40 Watt |
|
- | |||||
| 2 | W10627454 | Capacitor, Hood Fan Motor |
|
$ 312.04 | |||||
| 3 | W10627458 | Block, Terminal |
|
- | |||||
| 4 | WPW10627457 | Board, Control Hood Fan And Light (Replaces: W10627457) |
|
Immediately | $ 208.04 | ||||
| 5 | W10130909 | Bracket, Support |
|
$ 155.48 | |||||
| 6 | WP4375321 | Fuse (Replaces: 4375321) |
|
Immediately | $ 16.45 | ||||
| 7 | 8205670 | Holder, Fuse |
|
$ 66.99 | |||||
| 8 | W10627453 | Assembly, Ventilation Fan |
|
Immediately | $ 375.96 | ||||
| 9 | W11170104 | Kit, Stainless Steel Panel With Screws (Replaces: W10615478) |
|
$ 184.55 | |||||
| 10 | W10627629 | Damper |
|
Immediately | $ 12.60 |
