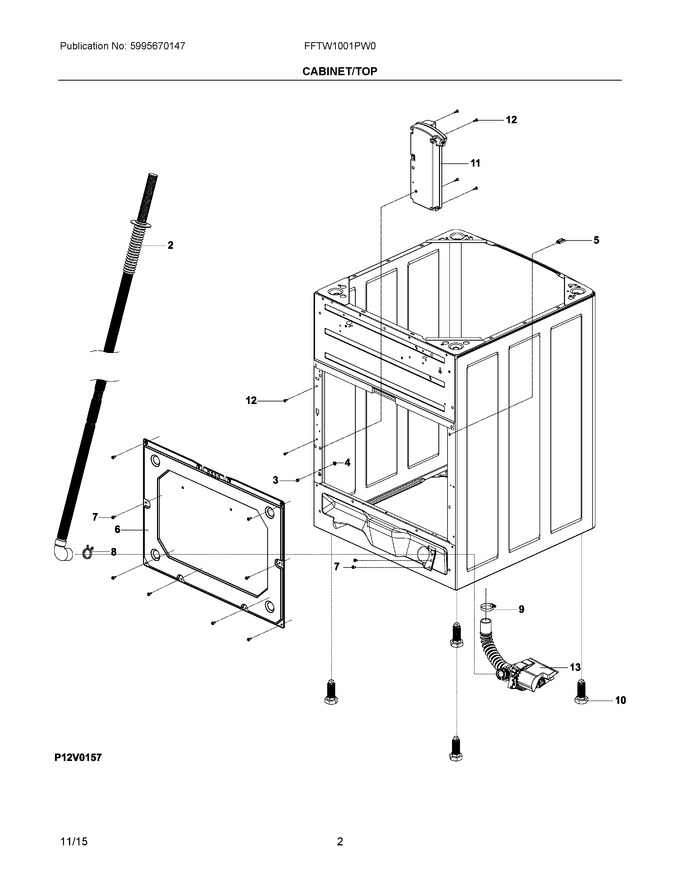

02 - Cabinet/top
03 - Motor/tub
04 - Control/panel
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304492232 | Drain Hose Outlet Assy |
|
$ 48.20 | |||||
| 3 | 5304492233 | Screw, Hwh M5x0.8x10 |
|
- | |||||
| 4 | 5304492234 | Nut, Lock, Hex, M5x0.8 |
|
- | |||||
| 5 | 5304492235 | Clip, Cable |
|
- | |||||
| 6 | 5304492236 | Panel, Back |
|
- | |||||
| 7 | 5304492237 | Screw, Hwh No. 10-16 |
|
- | |||||
| 8 | 5304536802 | Clamp, Hose, Wire (Replaces: 131306234) |
|
Immediately | $ 4.01 | ||||
| 9 | 5304492238 | Clamp, Hose-bowl |
|
- | |||||
| 10 | 5304492239 | Leg & Pad Assy |
|
$ 19.60 | |||||
| 11 | 5304499817 | Board, Power, Wmcu Assy (Replaces: 5304492241) |
|
$ 758.65 | |||||
| 12 | 5304492242 | Screw, Flange, 7-191/2 Hilo |
|
- | |||||
| 13 | 5304492243 | Pump & Hose Assy |
|
$ 340.20 | |||||
| NI | 5304492244 | Harness, Wiring, Emc (d/gear) |
|
- |
