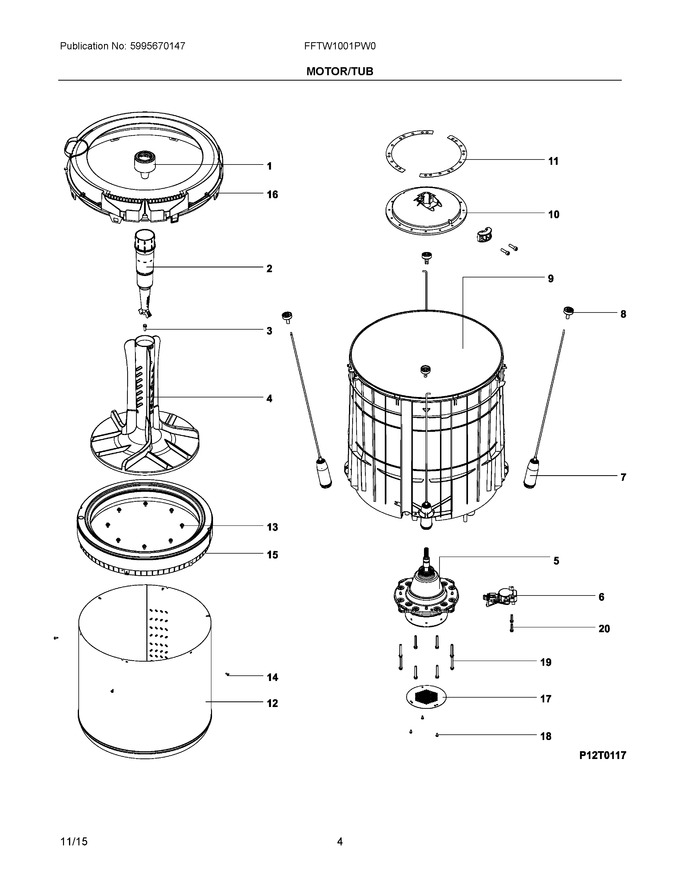

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304492246 | Dispenser, Detergent, Cup |
|
- | |||||
| 2 | 5304492247 | Filter |
|
$ 29.72 | |||||
| 3 | 5304492249 | Screw, M6x20mm |
|
- | |||||
| 4 | 5304492250 | Agitator |
|
$ 132.35 | |||||
| 5 | 5304492251 | Gearbox, Motor Assy |
|
- | |||||
| 6 | 140236745018 | Actuator, Motor Brake, Clutch (Replaces: 5304492254) |
|
Immediately | $ 33.62 | ||||
| 7 | 5304536561 | Rod Suspension Assy, (red) (Replaces: 5304492255) |
|
Immediately | $ 15.88 | ||||
| 8 | 5304492256 | Cap Rod Suspension, Top |
|
$ 15.49 | |||||
| 9 | 5304492280 | Tub, Outer |
|
$ 206.27 | |||||
| 10 | 5304492290 | Plate, Tub Support Asy |
|
$ 191.21 | |||||
| 11 | 5304492291 | Gasket, Tub Plate Assy |
|
$ 13.48 | |||||
| 12 | 5304492292 | Tub, Spin Assy |
|
$ 192.25 | |||||
| 13 | 5304492293 | Screw, Includes Bolts |
|
- | |||||
| 14 | 5304492294 | Screw, Includes Bolts |
|
- | |||||
| 15 | 5304492295 | Ring, Balance Assy, Large |
|
- | |||||
| 16 | 5304492296 | Cover, Outer Tub |
|
- | |||||
| 17 | 5304492297 | Cover, Motor, Barrier |
|
- | |||||
| 18 | 5304492298 | Screw, Machine Truss, M4x8 |
|
$ 7.40 | |||||
| 19 | 5304492299 | Screw, 1/4-10x50, Twin Lead 48-2 |
|
- | |||||
| 20 | 5304492300 | Screw, 1/4-10x28, Twin Lead 48 |
|
- |
