01 - Cover Sheet
02 - Cabinet/top
03 - Motor/tub

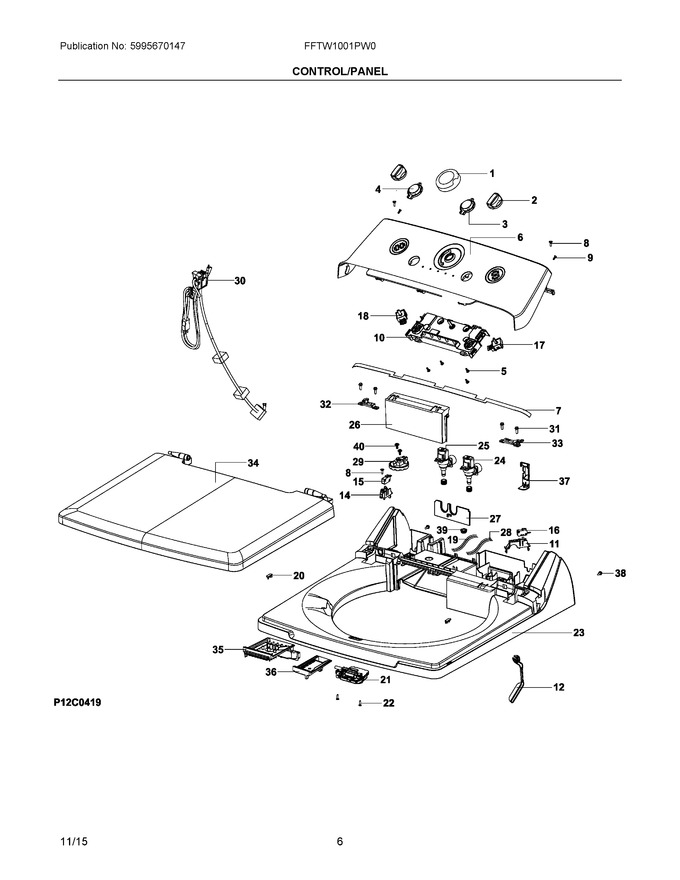

04 - Control/panel
05 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304492301 | Knob, Center Assy |
|
- | |||||
| 2 | 5304492302 | Knob, Option Assy |
|
- | |||||
| 3 | 5304492303 | Button, Push Start |
|
- | |||||
| 4 | 5304492304 | Button, Push-cancel |
|
- | |||||
| 5 | 5304492305 | Screw, 6-18x10 Wsh Hd |
|
- | |||||
| 6 | 5304492306 | Trim, Pms Lg Painted |
|
$ 123.69 | |||||
| 7 | 5304492307 | Seal, Trim Pms Large |
|
- | |||||
| 8 | 5304492242 | Screw, Flange, 7-191/2 Hilo |
|
- | |||||
| 9 | 5304492308 | Screw, Flat, Ph M4x12mm |
|
- | |||||
| 10 | 808783101 | Board Assembly, User Interface, Programmed |
|
$ 218.50 | |||||
| 10 | 5304492309 | Board, Unit Inter Assy |
|
$ 154.89 | |||||
| 11 | 5304492310 | Bracket, Knockoff Switch |
|
- | |||||
| 12 | 5304492311 | Lever, Knock Off |
|
$ 13.02 | |||||
| 14 | 5304492312 | Bracket, Micro Switch |
|
- | |||||
| 15 | 5304492313 | Switch, Micro Door |
|
$ 23.99 | |||||
| 16 | 5304492314 | Switch, Knock Off |
|
- | |||||
| 17 | 5304492315 | Switch, Option 4p |
|
- | |||||
| 18 | 5304492316 | Switch, Option 2p |
|
- | |||||
| 19 | 5304492317 | Knob, Wiring Connect |
|
- | |||||
| 20 | 5304492318 | Grommet, Panel Top |
|
- | |||||
| 21 | 5304492319 | Lock, Lid Assy |
|
$ 160.88 | |||||
| 22 | 5304492320 | Screw, Ph7-19x1/2 Hilo |
|
- | |||||
| 23 | 5304492321 | Panel, Top, Large |
|
$ 147.94 | |||||
| 24 | 5304492322 | Valve, Inlet, Cold |
|
Immediately | $ 73.93 | ||||
| 25 | 5304492323 | Valve, Inlet, Hot |
|
$ 73.07 | |||||
| 26 | 5304492324 | Cover, Dispenser Large |
|
$ 45.15 | |||||
| 27 | 5304492325 | Insert, Valve |
|
- | |||||
| 28 | 5304492326 | Sensor, 7 Wires, Oob+temp+p |
|
- | |||||
| 29 | 5304492327 | Sensor, Pressure |
|
$ 82.58 | |||||
| 30 | 5304492328 | Power Cord Assy., W/pressure Tube |
|
$ 143.95 | |||||
| 31 | 5304492329 | Screw, M5x16.5 Hwlts |
|
- | |||||
| 32 | 5304492330 | Cover, Hinge, Lh-large |
|
- | |||||
| 33 | 5304492331 | Cover, Hinge, Rh-large |
|
- | |||||
| 34 | 5304492332 | Lid, Solid/frame Asy |
|
$ 222.35 | |||||
| 35 | 5304492333 | Dispenser, Detergent |
|
- | |||||
| 36 | 5304492334 | Dispenser, Softener |
|
- | |||||
| 37 | 5304492335 | Cover, Harness |
|
- | |||||
| 38 | 5304492237 | Screw, Hwh No. 10-16 |
|
- | |||||
| 39 | 5304492336 | Plug, Valve Inlet |
|
- | |||||
| 40 | 5304492337 | Screw, M4 X 18 X 12mm |
|
- |
