SELECT A DIAGRAM

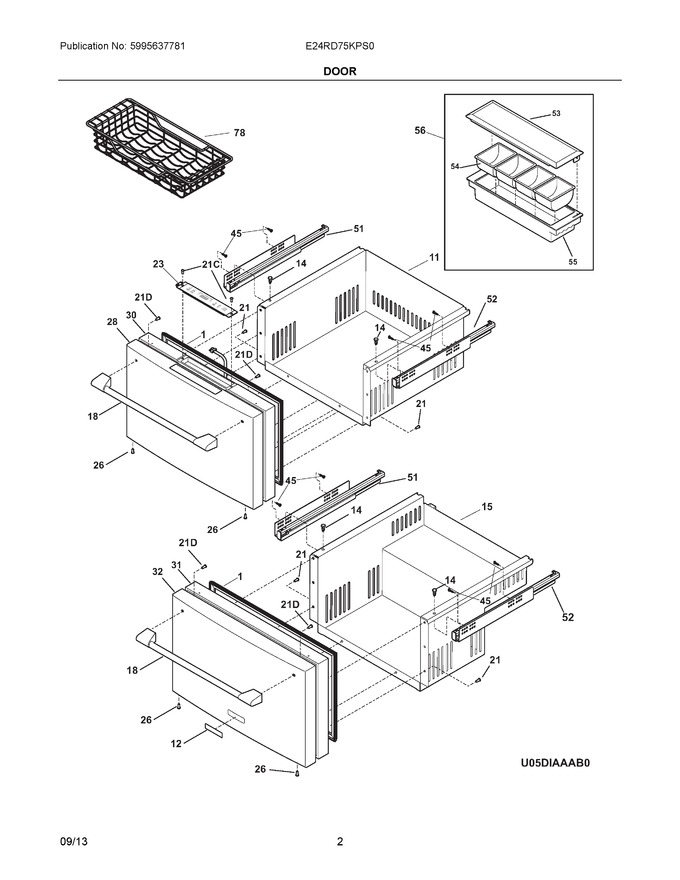

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


05 - Wiring Schematic


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242038301		Gasket-drawer				$ 244.81
11	241965802		Drawer-top		Appelez-nous	-
12	241603101		Label, Nameplate, Elux/icon				$ 80.96
14	241967001		Plug-button, Black		Appelez-nous	-
15	241966802		Drawer-bottom		Appelez-nous	-
18	241637915		Handle-door, Stainless Steel		Appelez-nous	-
21	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
23	241897405		Board-control, Temp Control				$ 296.21
26	215503206		Screw-#10-16 Hilo Phil Pan Hd		Appelez-nous	-
28	241997902		Cover-top Drawer		Appelez-nous	-
30	241981201		Front, Top Drawer, W/ui Harness				$ 948.68
31	241981202		Front-drawer, Bottom Drawer		Appelez-nous	-
32	241998004		Cover-bottom Drawer		Appelez-nous	-
45	240383411		Screw, Truss Hd Quad, #10-16 X .500, Silver Mist		Appelez-nous	-
51	241959501		Rail-shelf, Full Access, Left		Appelez-nous	-
52	241959502		Rail-shelf, Full Access		Appelez-nous	-
53	241965701		Lid-condiment Tray		Appelez-nous	-
54	241964401		Plate-condiment Tray				$ 48.11
55	241965602		Tray-condiment		Appelez-nous	-
56	241965502		Tray-condiment, Complete Assembly		Appelez-nous	-
78	241997401		Basket-sliding, Uc				$ 145.58
21C	241918201		Screw, #8-32 X 3/8, Flat Head				$ 9.98
21D	241548003		Screw-handle Mtg   (Replaces: 241998201)				$ 3.03
NI	316136900		Cleaner, Stainless Steel				$ 35.49
NI	218515401		Clip-grille				$ 17.72
NI	241962901		Seal, Drawer		Appelez-nous	-
NIA	241918302		Insert, #8-32 Flanged		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
