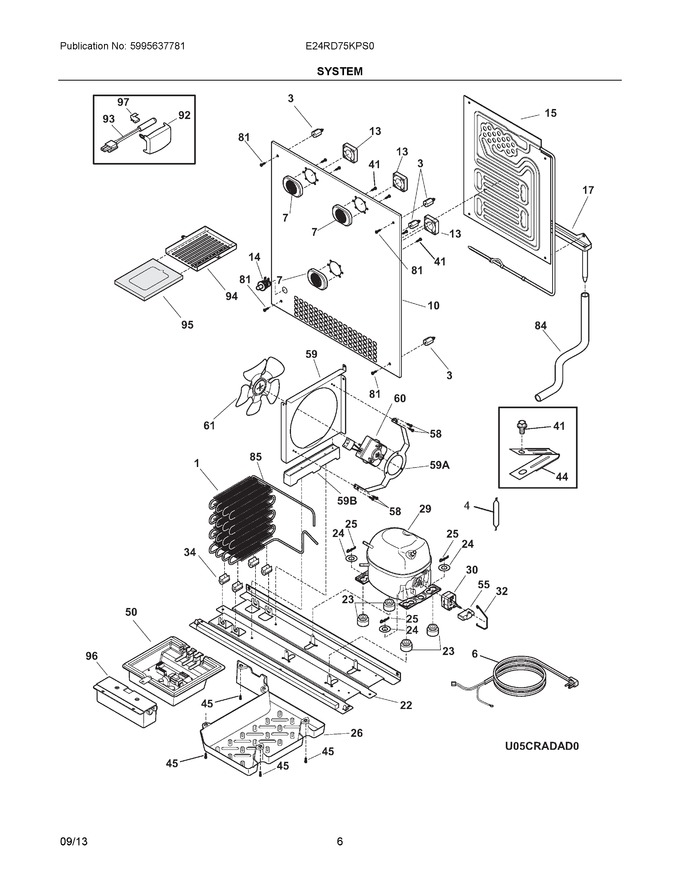

04 - System


05 - Wiring Schematic


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241931201		Condenser				$ 84.44
3	241890001		Spacer-evap, 1/2		Appelez-nous	-
4	5303305677		Dryer-filter, R134a System   (Replaces: 218944002)			Immediately	$ 31.67
6	241516904		Cord-service   (Replaces: 241516901)			Immediately	$ 38.68
7	241960301		Cover-fan				$ 16.59
10	241960101		Cover-evap Coil		Appelez-nous	-
13	241981801		Motor-evap Fan				$ 116.24
14	241911709		Switch, Plunger Style   (Replaces: 241911704)				$ 21.99
15	241891801		Evaporator, W/heat Exchanger				$ 250.81
17	241889801		Trough-drain		Appelez-nous	-
22	241888101		Base-compressor		Appelez-nous	-
23	218513300		Grommet-compr Mtg, (4)				$ 42.53
24	241812301		Washer-compr Mtg				$ 12.89
25	242037701		Clip-compressor Mtg				$ 2.84
26	241889901		Pan-defrost Drain		Appelez-nous	-
29	5303918366		Compressor, W/electricals		Appelez-nous	-
30	241707717		Starter-ptc		Appelez-nous	-
32	216649200		Clip, Controller				$ 6.30
34	240405201		Grommet, Rubber, Black, Cond Tube/wire				$ 19.85
41	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
44	5304456288		Clamp-wiring Harness, Strain Relief, Galv Steel		Appelez-nous	-
45	241906101		Screw-#10 X 3/4 Tek		Appelez-nous	-
50	241511116		Board-main Power				$ 244.08
55	5304464438		Capacitor, Run, 220 Vac, 15 Microfarad   (Replaces: 218909913)			Immediately	$ 35.38
58	241953902		Screw, Hex Washer Head, 8-18 X 3/8   (Replaces: 240433203)			Immediately	$ 17.11
59	241889701		Shroud, Cond Fan Motor				$ 76.84
60	297279500		Motor-condenser Fan   (Replaces: 241584301)			Immediately	$ 141.66
61	241639502		Blade-condenser Fan   (Replaces: 241639501)			Immediately	$ 21.99
81	240555002		Screw, 8-32 X 3/8, Black   (Replaces: 240555004)			Immediately	$ 13.46
84	241931401		Tube-drain, Lower		Appelez-nous	-
85	241898101		Tube-hot Loop		Appelez-nous	-
92	241512902		Cover-sensor, Black		Appelez-nous	-
93	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
94	241904001		Housing-filter, Air				$ 32.61
95	EAFCBF		Filter-air   (Replaces: 242047801)			Immediately	$ 27.64
96	241900001		Board-led Power				$ 281.56
97	241519401		Clip, Sensor				$ 8.51
3A	241890002		Spacer-evap, 1		Appelez-nous	-
59A	241889601		Bracket-cond Motor		Appelez-nous	-
59B	241896401		Support, Cond Shroud		Appelez-nous	-
NI	241919901		Clamp, Cable		Appelez-nous	-
NI	241853201		Screw, #8-18 X 1/2		Appelez-nous	-
NI	240542601		Clip-wiring Harness		Appelez-nous	-
NI	241739251		Label-energyguide, Energy Guide		Appelez-nous	-
NI	218515401		Clip-grille				$ 17.72
NIA	240359403		Screw-fan Shroud, (2)				$ 3.79
NIA	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NIA	241932601		Bushing-service Cord		Appelez-nous	-
NIA	241960701		Harness-wiring, Secondary, Drawer Harness				$ 94.98
NIA	241984501		Seal-coil Cover		Appelez-nous	-
NIA	241900401		Harness-led Driver				$ 110.10
NIB	241532401		Channel				$ 30.47
NIB	241931901		Washer, Nylon		Appelez-nous	-
NIB	241932701		Retainer, Wire				$ 5.53
NIB	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 19.13
NIC	241961201		Harness-wiring				$ 148.85
NID	241961701		Harness-wiring, Machine Compt				$ 150.21
NIE	241900201		Harness-evaporator				$ 105.32
NIF	241900701		Harness-intermediate, Uc, Led Lighting				$ 24.22
NIG	241961801		Harness-evap Light Switch				$ 37.19
