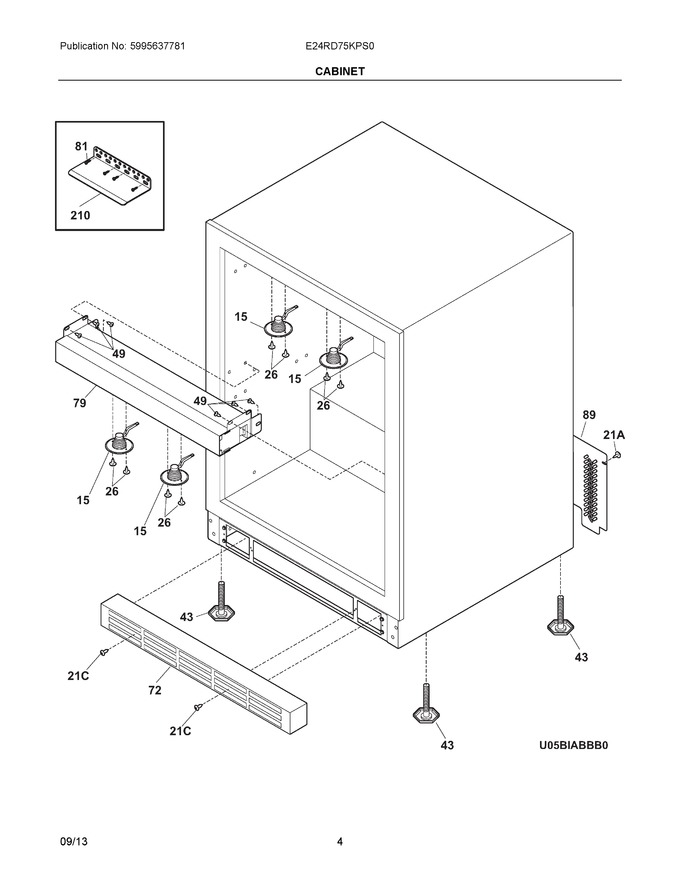

SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet


04 - System


05 - Wiring Schematic


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
15	5304520842		Light Assembly, Led, (4)   (Replaces: 241904201)				$ 215.46
26	241904301		Screw, Led Lighting		Appelez-nous	-
43	241911501		Leveling Leg, Screw				$ 4.06
49	218362501		Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2)				$ 12.05
72	241908403		Grille/kickplate, Stainless		Appelez-nous	-
79	241960402		Mullion, Black				$ 237.49
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
89	241898002		Cover-access		Appelez-nous	-
210	241903801		Bracket-anti Tip				$ 61.20
21A	241906101		Screw-#10 X 3/4 Tek		Appelez-nous	-
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
NI	218515401		Clip-grille				$ 17.72
NI	241900701		Harness-intermediate, Uc, Led Lighting				$ 24.22

    View Diagram in Separate Window       Print Part List
