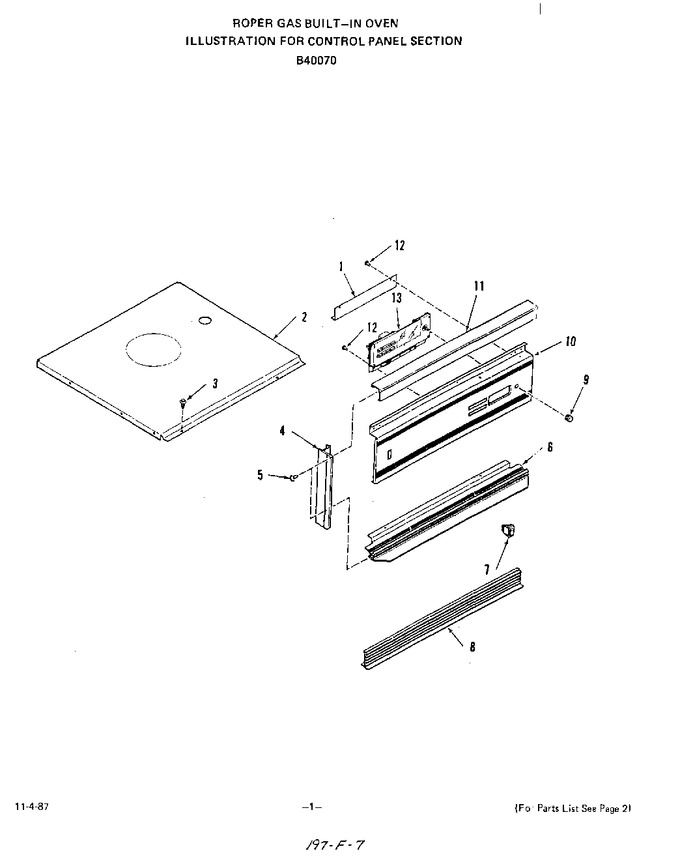

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 338697 | Baffle |
|
- | |||||
| 2 | 338355 | Insulation Retainer |
|
- | |||||
| 3 | 286628 | Screw 10-32x5/16`` |
|
- | |||||
| 4 | 336631 | Control Panel Side Trim (left) |
|
- | |||||
| 4 | 336630 | Control Panel Side Trim (right) |
|
- | |||||
| 5 | 336706 | Screw 6-32x1/2`` |
|
- | |||||
| 6 | 336632 | Control Panel Lower Trim |
|
- | |||||
| 7 | 334649 | Switch |
|
- | |||||
| 8 | 336628 | Trim Vent |
|
- | |||||
| 9 | 334961 | Knob-clock |
|
- | |||||
| 10 | 336655 | Control Panel |
|
- | |||||
| 11 | 336629 | Lamp Shade |
|
- | |||||
| 12 | 78153 | Screw |
|
- | |||||
| 13 | W11415783 | Clock/oven Control W/lens (Replaces: 337179) |
|
Immediately | $ 16.41 |
