SELECT A DIAGRAM

02 - Control Panel

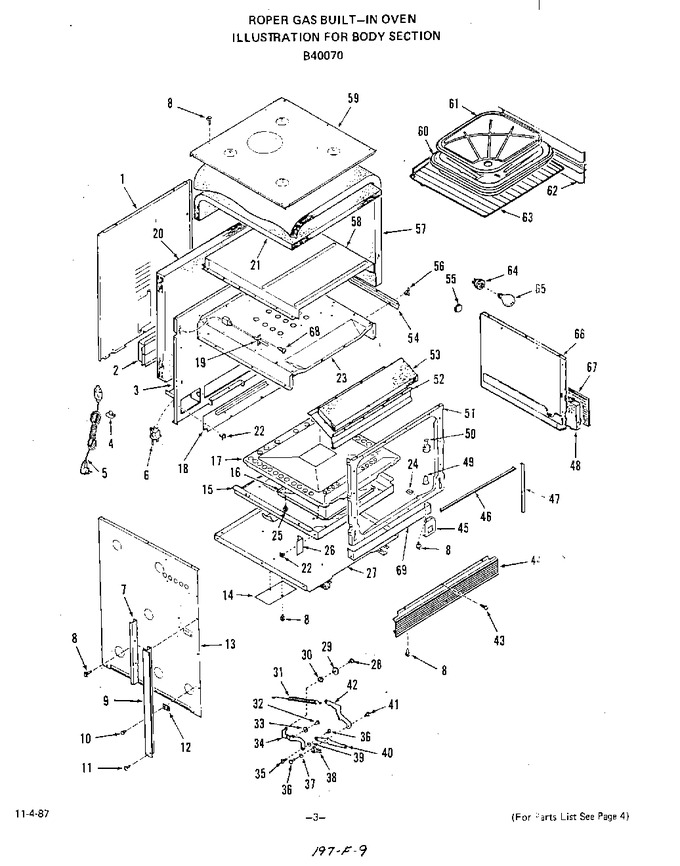

03 - Body


04 - Burner


05 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	338363		Wire Cover		Appelez-nous	-
2	323760		Air Chamber Cover		Appelez-nous	-
3	336592		Oven Back		Appelez-nous	-
4	97047		Clip (for Key 5)		Appelez-nous	-
5	232132		Range Service Cord		Appelez-nous	-
6	232150		Disconnect		Appelez-nous	-
7	315233		Channel Trim - Lt. Or Rt.		Appelez-nous	-
8	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
9	336622		Side Trim-front Frame (left)		Appelez-nous	-
9	336623		Side Trim-front Frame (right)		Appelez-nous	-
10	281160		Accordian Rivet		Appelez-nous	-
11	327621		Screw 6-20x3/8``		Appelez-nous	-
12	302862		Spacer-side Trim (2 Req)		Appelez-nous	-
13	338361		Body Side (right)		Appelez-nous	-
13	338362		Body Side (left)		Appelez-nous	-
14	327981		Cover Plate		Appelez-nous	-
15	323750		Burner Box		Appelez-nous	-
16	281418		Baffle-oven Bottom		Appelez-nous	-
17	319446		Oven Bottom W/baffle		Appelez-nous	-
18	323766		Cover Plate		Appelez-nous	-
19	338242		Sensor		Appelez-nous	-
20	336639		Insulation-oven Back		Appelez-nous	-
21	313321		Insulation-oven Top & Back (1 Piece)		Appelez-nous	-
22	70588		Clip		Appelez-nous	-
23	313359		Oven Top		Appelez-nous	-
24	108069		Speed Nut 10 - 32		Appelez-nous	-
25	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
26	327985		Insulation Shield (2 Req)		Appelez-nous	-
27	6501		Main Bottom   (Replaces: 306501)			Immediately	$ 63.98
28	288881		Bolt 1/4-20x3/8``		Appelez-nous	-
29	323451		Washer		Appelez-nous	-
30	69459		Lockwasher		Appelez-nous	-
31	286547		Oven Door Spring (2 Req)		Appelez-nous	-
32	104735		Shoulder Rivet		Appelez-nous	-
33	104734		Roller		Appelez-nous	-
34	324036		Oven Door Hinge (inc`s. 35, 36 & 39) (left)		Appelez-nous	-
34	324037		Oven Door Hinge (inc`s. 35, 36 & 39) (right)		Appelez-nous	-
35	97717		Hinge Pivot Sleeve		Appelez-nous	-
36	97748		Rivet		Appelez-nous	-
37	103208		Washer		Appelez-nous	-
38	323456		Hinge Latch (right)		Appelez-nous	-
38	323457		Hinge Latch (left)		Appelez-nous	-
39	97749		Washer		Appelez-nous	-
40	324038		Oven Door Arm (inc`s. 35, 36 & 39) (right)		Appelez-nous	-
40	324039		Oven Door Arm (inc`s. 35, 36 & 39) (left)		Appelez-nous	-
41	104629		Hinge Pivot Sleeve		Appelez-nous	-
42	323454		Spring Link		Appelez-nous	-
43	97221		Screw 6-32x5/16``		Appelez-nous	-
44	338443		Lower Trim-front Frame		Appelez-nous	-
45	279457		Bracket-front Frame Support (2 Req)			Immediately	$ 7.13
46	338209		Seal-top & Bottom		Appelez-nous	-
47	338210		Seal-side (rt. Or Lt.)		Appelez-nous	-
48	286448		Insulation (rt. Or Lt.)		Appelez-nous	-
49	323446		Support-hinge (2 Req)		Appelez-nous	-
50	327977		Bracket-door Spring (2 Req)		Appelez-nous	-
51	331856		Front Frame (inc`s. 35, 36 & 39)		Appelez-nous	-
52	289836		Skirt-broiler Burner		Appelez-nous	-
53	97324		Insulation		Appelez-nous	-
54	294506		Raceway-capillary		Appelez-nous	-
55	98230		Plug Button				$ 257.43
56	70588		Clip		Appelez-nous	-
57	313324		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
58	313320		Vent Box		Appelez-nous	-
59	336593		Oven Cabinet Top		Appelez-nous	-
60	331592		Broiler Pan		Appelez-nous	-
61	326297		Broiler Pan Grid		Appelez-nous	-
62	279538		Oven Rack Guide (right)		Appelez-nous	-
62	279537		Oven Rack Guide (left)		Appelez-nous	-
63	279539		Oven Rack (2 Req)		Appelez-nous	-
64	87883		Holder-oven Lamp		Appelez-nous	-
65	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
66	331858		Oven Side (left)		Appelez-nous	-
66	331859		Oven Side (right)		Appelez-nous	-
67	279470		Insulation-door Spring (2 Req)		Appelez-nous	-
68	336152		Screw		Appelez-nous	-
69	338136		Burner Box Bottom		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
