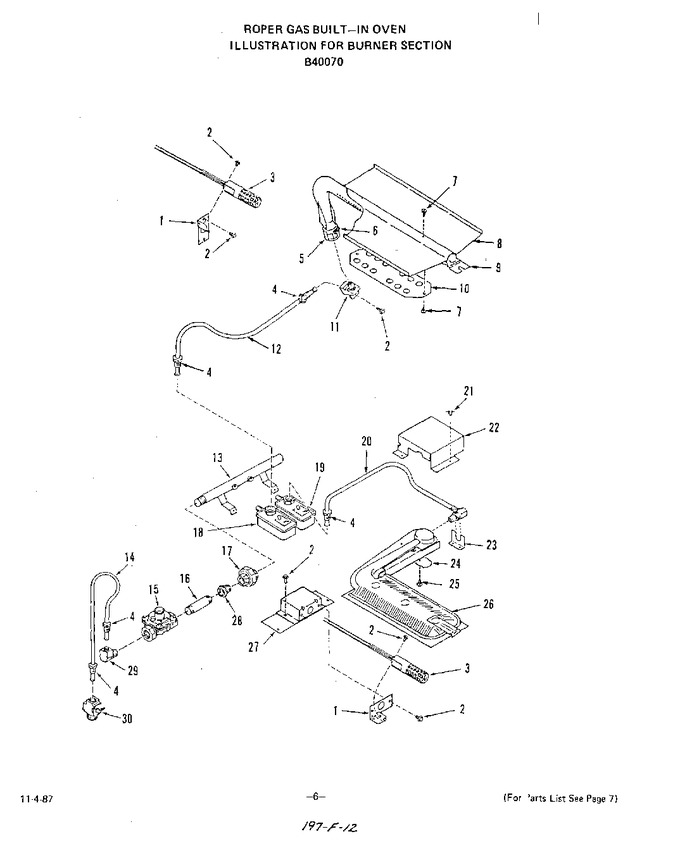

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	311689		Bracket-igniter		Appelez-nous	-
2	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
3	WG02F04373		Igniter   (Replaces: 337263)			Immediately	$ 109.23
4	142433		Inverted Nut 3/8``		Appelez-nous	-
5	239267		Air Shutter		Appelez-nous	-
6	239268		Adjustment Screw-air Shutter		Appelez-nous	-
7	97217		Screw 8-32x3/8`` (4 Req)		Appelez-nous	-
8	325271		Upper Baffle - Broiler Burner		Appelez-nous	-
9	306497		Broiler Burner (inc`s. 5, 6, 7, 8, 10)		Appelez-nous	-
10	281279		Lower Baffle-broiler Burner		Appelez-nous	-
11	311981		Broiler Orifice Fitting		Appelez-nous	-
12	315075		Tubing 3/8`` (control Valve To Broiler Orifice)		Appelez-nous	-
13	306365		Manifold Pipe W/bracket		Appelez-nous	-
14	113397		Tubing 3/8`` (shut Off Valve To Pressure Regulator)		Appelez-nous	-
15	295270		Pressure Regulator		Appelez-nous	-
16	300967		Nipple 3/8`` X 2``		Appelez-nous	-
17	295269		Union 1/2``		Appelez-nous	-
18	306467		Control Valve-broiler		Appelez-nous	-
19	307006		Control Valve-oven		Appelez-nous	-
20	314398		Tubing 3/8`` (control Valve To Oven Burner)		Appelez-nous	-
21	70588		Clip		Appelez-nous	-
22	323768		Cover Box-venturi		Appelez-nous	-
23	279490		Bracket-orifice Fitting		Appelez-nous	-
24	323455		Air Shutter		Appelez-nous	-
25	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
26	311305		Oven Burner (inc`s. 24, 25)		Appelez-nous	-
27	307161		Support-igniter		Appelez-nous	-
28	102221		Bushing-reducer		Appelez-nous	-
29	295271		Elbow		Appelez-nous	-
30	320479		Shut-off Valve		Appelez-nous	-
