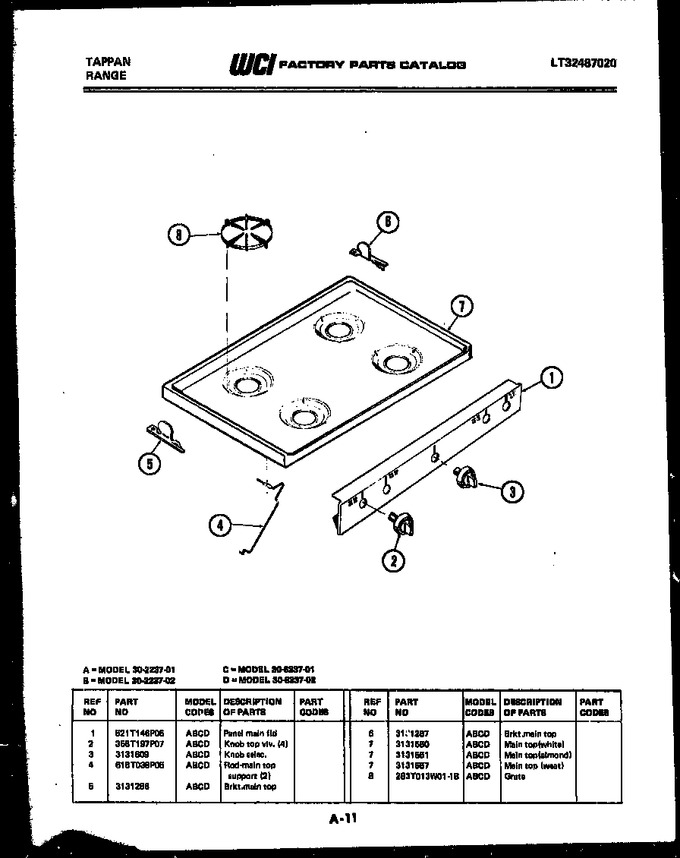

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 521T146P05 Panel Main Fld Appelez-nous -
2 358T197P07 Knob Top Vlv. (4) Appelez-nous -
3 3131609 Knob Selec. Appelez-nous -
4 618T038P05 Rod, Main Top Support (2) Appelez-nous -
5 3131286 Brkt. Main Top Appelez-nous -
6 3131287 Brkt. Main Top Appelez-nous -
7 3131551 Main Top (almond) Appelez-nous -
8 283T013W01-18 Grate Appelez-nous -
