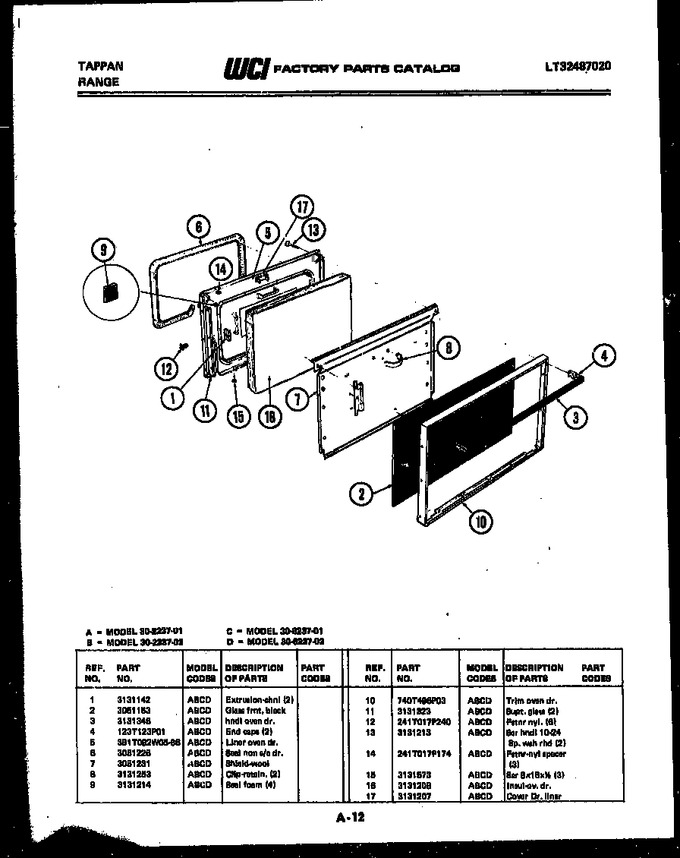

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131142 | Extrusion Chnl (2) |
|
- | |||||
| 2 | 3051153 | Glass Frnt, Black |
|
- | |||||
| 3 | 3131345 | Hndl Oven Dr. |
|
- | |||||
| 4 | 123T123P01 | End Caps (2) |
|
- | |||||
| 5 | 381T092W05-86 | Liner Oven Dr |
|
- | |||||
| 6 | 3051225 | Seal - Non S/c Dr |
|
- | |||||
| 7 | 3051231 | Shield, Wool |
|
- | |||||
| 8 | 3131253 | Clip-retain. (2) |
|
- | |||||
| 9 | 3131214 | Seal, Foam (4) |
|
- | |||||
| 10 | 740T496P03 | Trim Oven Dr |
|
- | |||||
| 11 | 3131323 | Supt. Glass (2) |
|
- | |||||
| 12 | 241T017P240 | Fstnr Nyl (6) |
|
- | |||||
| 13 | 3131213 | Scr Hndl 10-24 Sp Wsh Rhd (2) |
|
- | |||||
| 14 | 241T017P174 | Fstnr-nyl Spacer (3) |
|
- | |||||
| 15 | 3131573 | Scr 8 X 18 X 1/2 (3) |
|
- | |||||
| 16 | 3131208 | Insul-ov Dr |
|
- | |||||
| 17 | 3131207 | Cover-dr Liner |
|
- |
