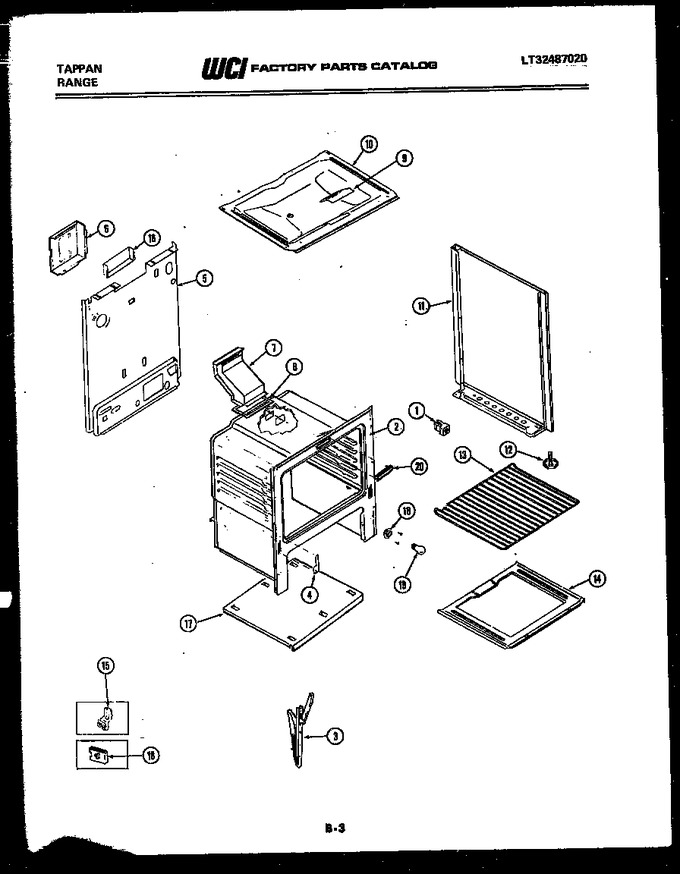

02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 665T188P02 | Spacer, Bodyside (8) |
|
- | |||||
| 3 | 3131569 | Chnl Dr Hnge (2) |
|
- | |||||
| 4 | 3131570 | Cover-hnge Cut-out (2) |
|
$ 7.35 | |||||
| 5 | 3131567 | Back, Main |
|
- | |||||
| 6 | 655T421F02-18 | Shield-rear Wall |
|
- | |||||
| 7 | 3131503 | Flue |
|
- | |||||
| 8 | 3131355 | Gasket, Flue |
|
- | |||||
| 9 | 3131101 | Cover, Plate |
|
- | |||||
| 10 | 095T030F02-86 | Burner Box |
|
- | |||||
| 11 | 3131454 | Pnl. B/s (rh Almond) |
|
- | |||||
| 11 | 3131453 | Pnl. B/s (lh Almond) |
|
- | |||||
| 12 | 636M004P01 | Screw - Leveling (4) |
|
- | |||||
| 13 | 3051220 | Rack, Oven (2) |
|
- | |||||
| 14 | 058T036F02-86 | Bottom, Oven |
|
- | |||||
| 15 | 145T025P01 | Clip-thrmo. Blb (2) |
|
$ 1.76 | |||||
| 16 | 3131180 | Base, Broil |
|
- | |||||
| 17 | 241T017P235 | Fastn .84 Type (2) |
|
- | |||||
| 18 | 662T042P01 | Socket |
|
- | |||||
| 19 | 374T018P05 | Light Bulb |
|
- | |||||
| 20 | 3131548 | Cover Frnt Main |
|
- | |||||
| *52910 | 316282700 | Screw, Ovn Bttn (Replaces: 3131732) |
|
$ 9.93 | |||||
| 14A | 3131201 | Insul. Oven Wrap (non-illustrated) |
|
- | |||||
| 14B | 3131246 | Insul - Oven Back (non-illustrated) |
|
- | |||||
| 15A | 3131114 | Bmpr-frnt Main (2) (non-illustrated) |
|
- | |||||
| 15B | 694T092F01 | Supt-ovr(bttm) (2) (non-illustrated) |
|
- | |||||
| 17A | 5304534000 | Cord, Power (non-illustrated) (Replaces: 3131425) |
|
Immediately | $ 33.37 | ||||
| 17B | 241T017P16 | Fstnr. Power Cord (non-illustrated) |
|
- |
