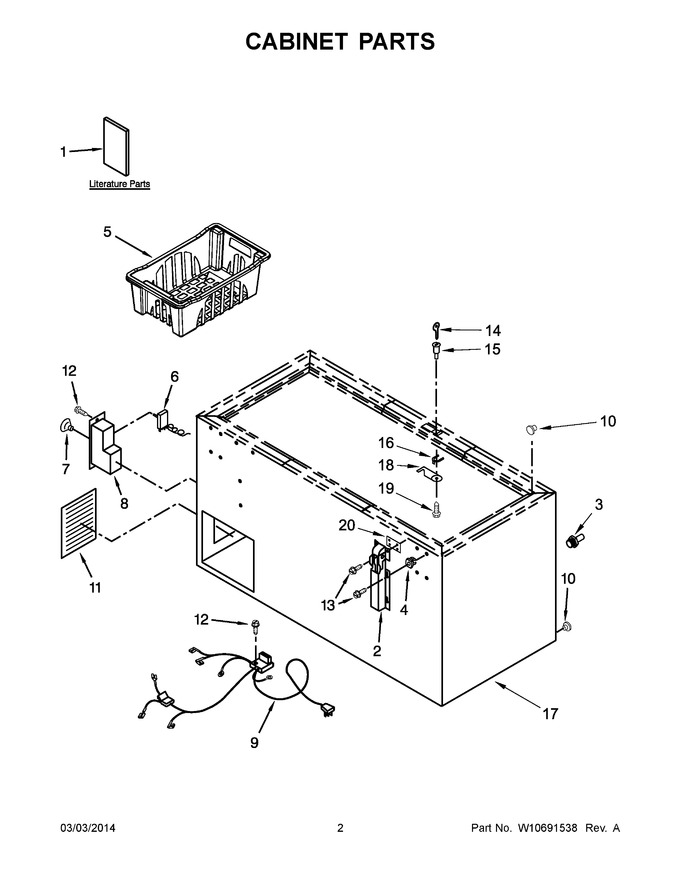

02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10649227		Use & Care Guide		Appelez-nous	-
2	W11192185		Hinge, Assembly   (Replaces: 4-34582-002)				$ 164.89
3	W11663505		Adapter, Drain   (Replaces: 1-33178)				$ 15.45
4	3-23995-014		Plastic, Grommet		Appelez-nous	-
5	W11553315		Basket   (Replaces: 4-36033-002)				$ 88.53
6	WP4-35940-001		Thermostat   (Replaces: 4-35940-001)				$ 148.16
7	4-36019-001		Knob, Thermostat		Appelez-nous	-
8	W10682894		Box, Control   (Replaces: 4-35976-003)		Appelez-nous	-
9	4-35129-002		Harness, Main				$ 255.65
10	3-33211-001		Plug, Drain				$ 10.63
11	4-35099-001		Panel, Access		Appelez-nous	-
12	3-24004-049		Screw		Appelez-nous	-
13	WPW10031790		Screw   (Replaces: 3-24004-005)			Immediately	$ 7.87
14	1-26356		Key				$ 5.83
15	3-35284-001		Assembly, Lock				$ 24.42
16	1-26359		Clip, Spring				$ 71.75
17	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
18	2-35195-006		Lock, Hook Bolt				$ 23.46
19	W11233072		Screw   (Replaces: 3-24004-100)			Immediately	$ 12.62
20	1-17548-006		Spacer, Hinge				$ 18.64
